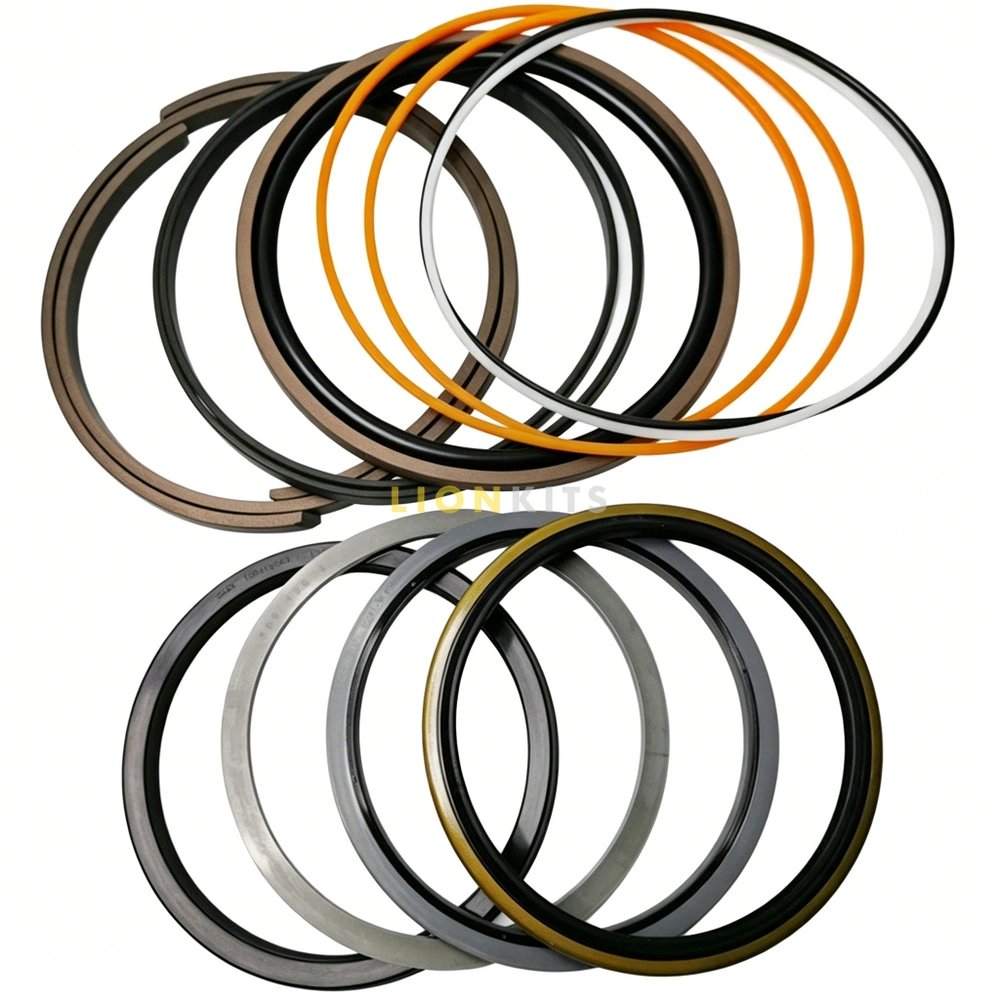

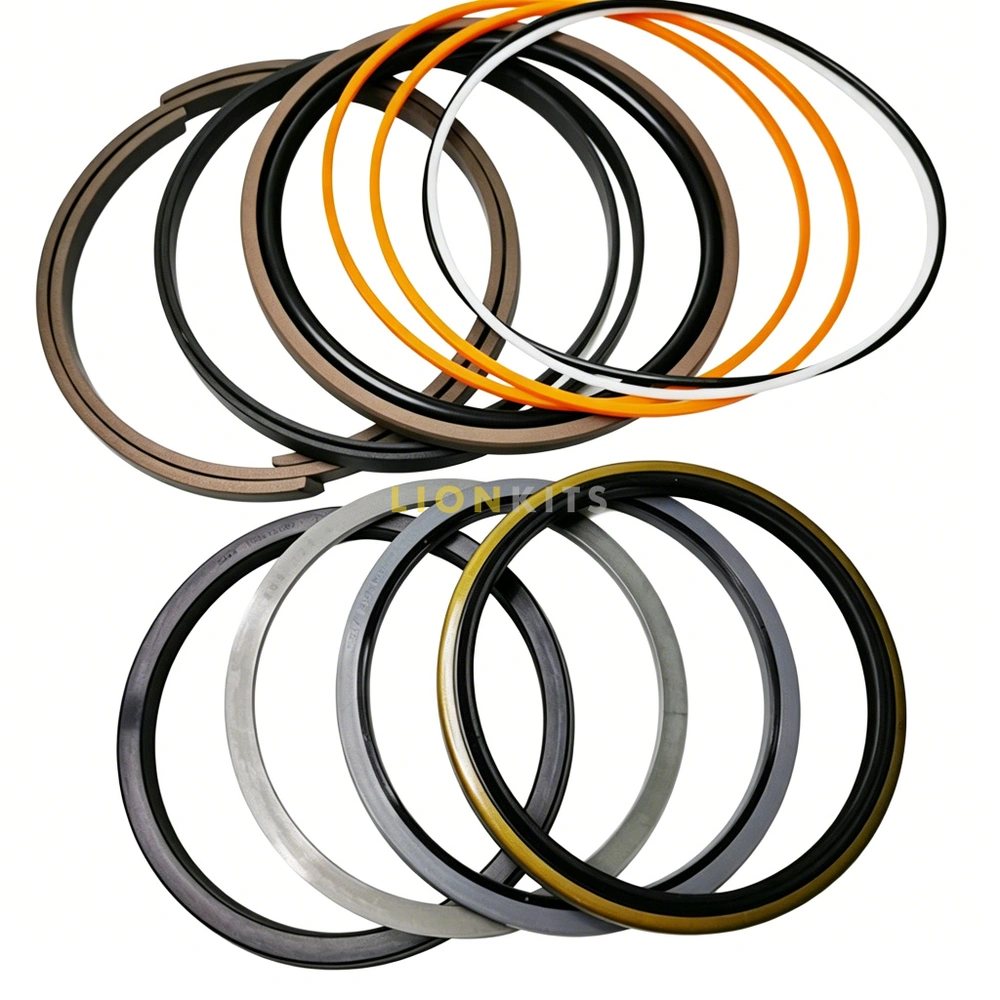

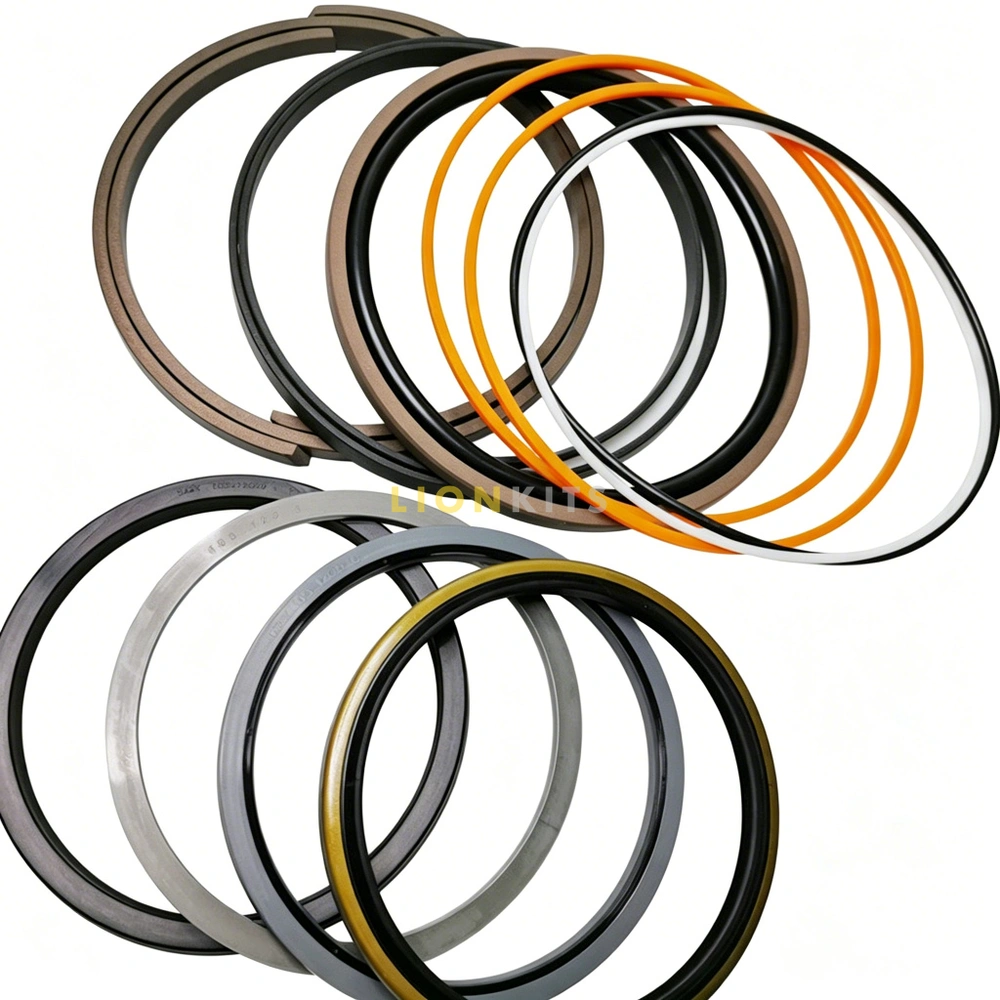

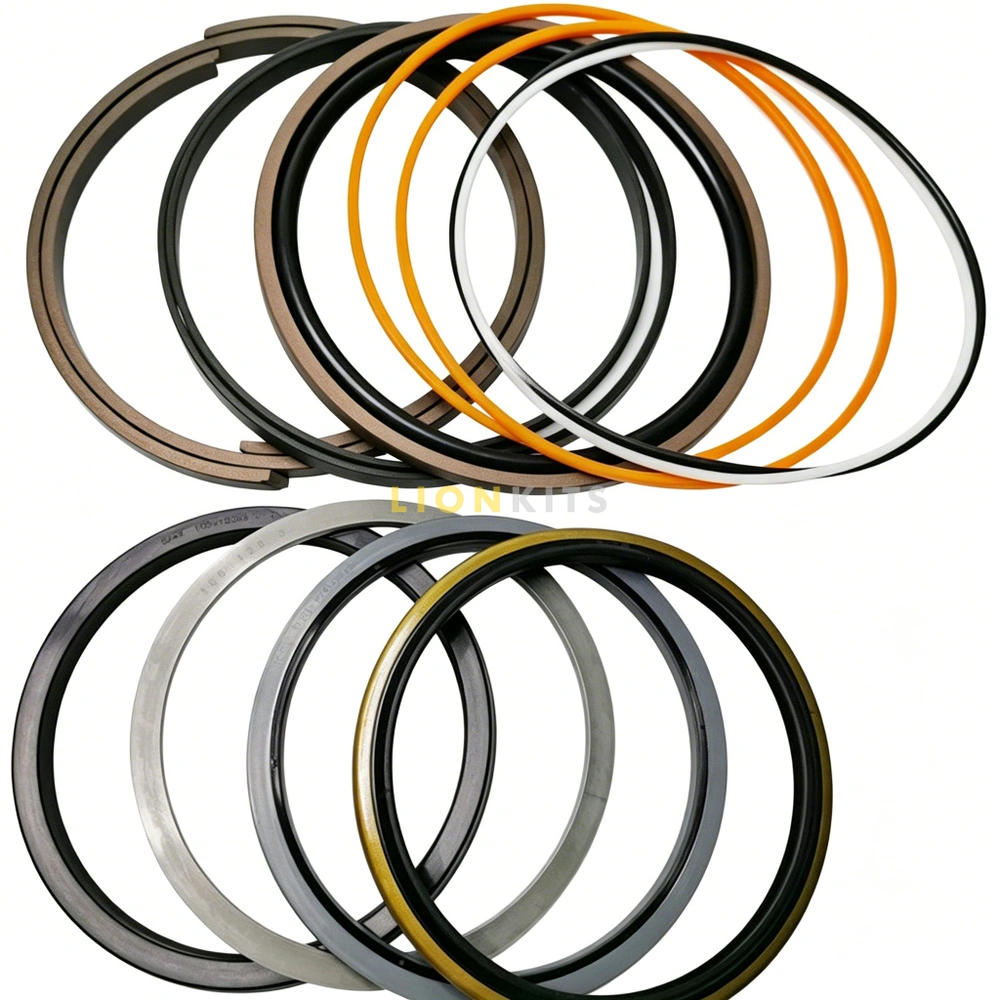

CAT 329DL Excavator Stick Cylinder Seal Kit 266-8016

Heavy-Duty Stick Cylinder Seal Overhaul Kit for Caterpillar 329DL Excavators | OEM Part: 266-8016 / 2668016

Restoring High-Impact Digging Force & Hydraulic Precision

The stick (dipper) cylinder on 30-ton class excavators endures extreme cyclic digging forces, high-frequency pressure shockwaves during bucket crowding, and relentless exposure to abrasive dirt. On the Caterpillar 329DL, degradation of the stick cylinder dynamic seals leads to severe stick drift, reduced digging breakout force, sluggish cycle times, and external hydraulic fluid weeping past the cylinder head gland.

Our 266-8016 Hydraulic Cylinder Seal Kit provides a complete overhaul solution, replacing worn dynamic rod seals, piston rings, and wipers with heavy-duty mining and construction-grade elastomers engineered to handle intense pressure containment and extend service life.

Technical Specifications & System Cross-Reference

• Brand Compatibility: Caterpillar / CAT Equipment

• Target Machinery Application: Caterpillar 329DL Track Excavator

• Specific Cylinder Circuit: Stick / Dipper Arm Hydraulic Cylinder Assembly

• Primary OEM Part Numbers: 266-8016 / 2668016

• Internal Catalog SKU: 2668016-CAT-329DL

• Material Science Matrix: Mining-Grade TPU (Hydrolysis-Resistant) + High-Temp Viton (FKM) + Bronze-Filled PTFE + Industrial NBR

• Dynamic Pressure Rating: Rated for continuous load holding and peak shock spikes up to 250+ Bar (3625+ PSI)

• Temperature Operational Limit: -30°C to 120°C (-22°F to 248°F)

• Kit Inclusions: Dynamic Rod U-Cup Seals, Buffer Seals, Piston Wear Rings, Double-Lip Scraper Wiper, O-Rings, and Anti-Extrusion Backup Rings

Key Material Science & Performance Features

• High-Modulus Polyurethane (TPU) U-Cups: Maintains flexible lip memory under rapid pressure shockwaves during high-impact rock digging without splitting.

• High-Temp Viton (FKM) Energizers: Keeps dynamic seal lips energized against gland walls during severe hydraulic oil thermal spikes in heavy summer operations.

• Anti-Extrusion Bronze-PTFE Wear Rings: Absorbs severe side-loads, prevents piston-to-barrel metal scoring, and eliminates internal fluid bypass across chambers.

• Heavy-Duty Scraper Wiper: Actively strips mud, wet clay, gravel dust, and wash-down water from the chrome rod surface before foreign particles enter the gland.

Field Service & Rebuild Tips for Equipment Mechanics

💡 Fleet Maintenance Tip:

Stick drift on the CAT 329DL is frequently caused by internal hydraulic oil bypassing degraded PTFE piston seals during heavy arm loading. When servicing the stick cylinder using the 266-8016 kit, inspect the inner cylinder barrel wall for longitudinal scoring and check the chrome rod for axial distortion. Always replace the wear rings concurrently with the primary rod and piston seals to absorb side-load chatter and double the service life of your new seals.

Q&A

• Q: Is seal kit 266-8016 compatible with other Caterpillar excavator models?

  A: Part number 266-8016 / 2668016 is engineered specifically for the stick cylinder on the CAT 329DL. Always cross-reference your machine serial number or cylinder housing part number before installation to confirm fitment.

• Q: What are the main failure symptoms indicating a CAT 329DL stick cylinder needs a seal overhaul?

  A: Key indicators include stick drift (the arm slowly dropping or extending under load), visible hydraulic fluid weeping around the head gland wiper, slow arm curling speed, or elevated hydraulic oil running temperatures caused by internal bypass.
