277-3395 Boom Cylinder Repair Kit for CAT 305E Excavator

Heavy-Duty Boom Cylinder Seal Overhaul Kit for Caterpillar 305E Mini Excavators | OEM Part: 277-3395 / 2773395

Restoring Heavy Lifting Power & Hydraulic Holding Stability

Main boom cylinders on mini excavators endure continuous load holding, severe vertical shock loads during digging, and relentless exposure to dirt and mud. On the Caterpillar 305E, degradation of the boom cylinder seals leads to dangerous boom drift (sinking), loss of lifting capacity, sluggish hydraulic response, and external fluid weeping past the rod gland.

Our 277-3395 Hydraulic Cylinder Seal Kit delivers a comprehensive overhaul solution, replacing worn dynamic rod seals, piston rings, and wipers with heavy-duty earthmoving-grade elastomers designed for high-pressure containment and long service life.

Technical Specifications & System Cross-Reference

• Brand Compatibility: Caterpillar / CAT Equipment

• Target Machinery Application: Caterpillar 305E Mini Hydraulic Excavator

• Specific Cylinder Circuit: Main Boom Hydraulic Cylinder Assembly

• Primary OEM Part Numbers: 277-3395 / 2773395

• Internal Catalog SKU: 2773395-CAT-305E

• Material Science Matrix: Mining-Grade TPU (Hydrolysis-Resistant) + High-Temp Viton (FKM) + Bronze-Filled PTFE + Industrial NBR

• Dynamic Pressure Rating: Rated for continuous load holding and peak shock spikes up to 250+ Bar (3625+ PSI)

• Temperature Operational Limit: -30°C to 120°C (-22°F to 248°F)

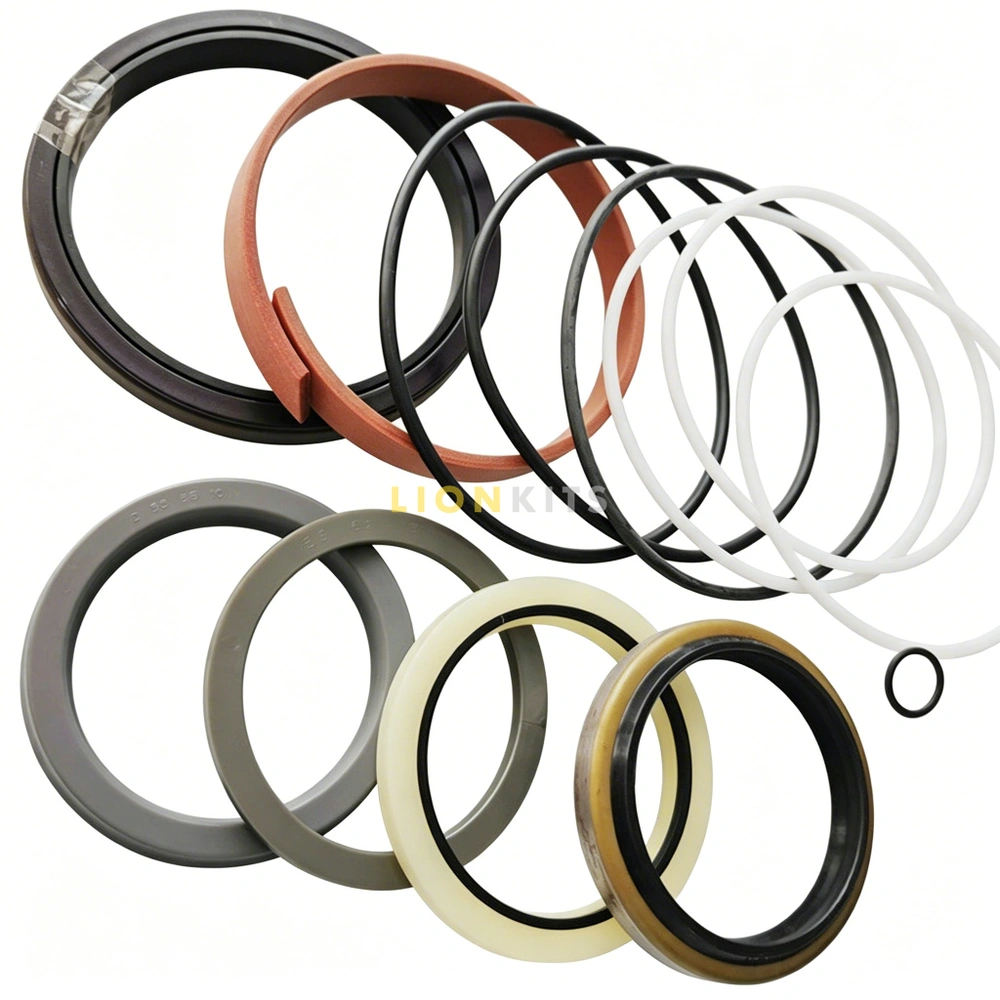

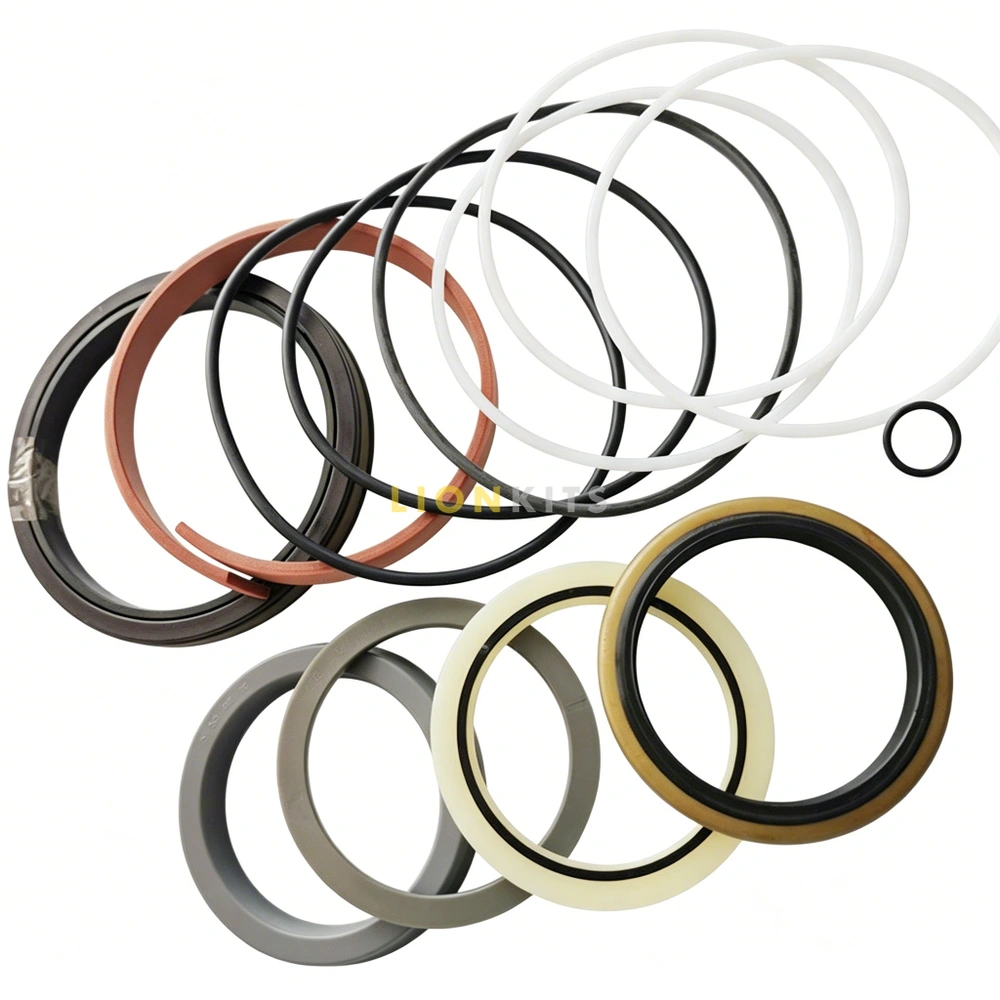

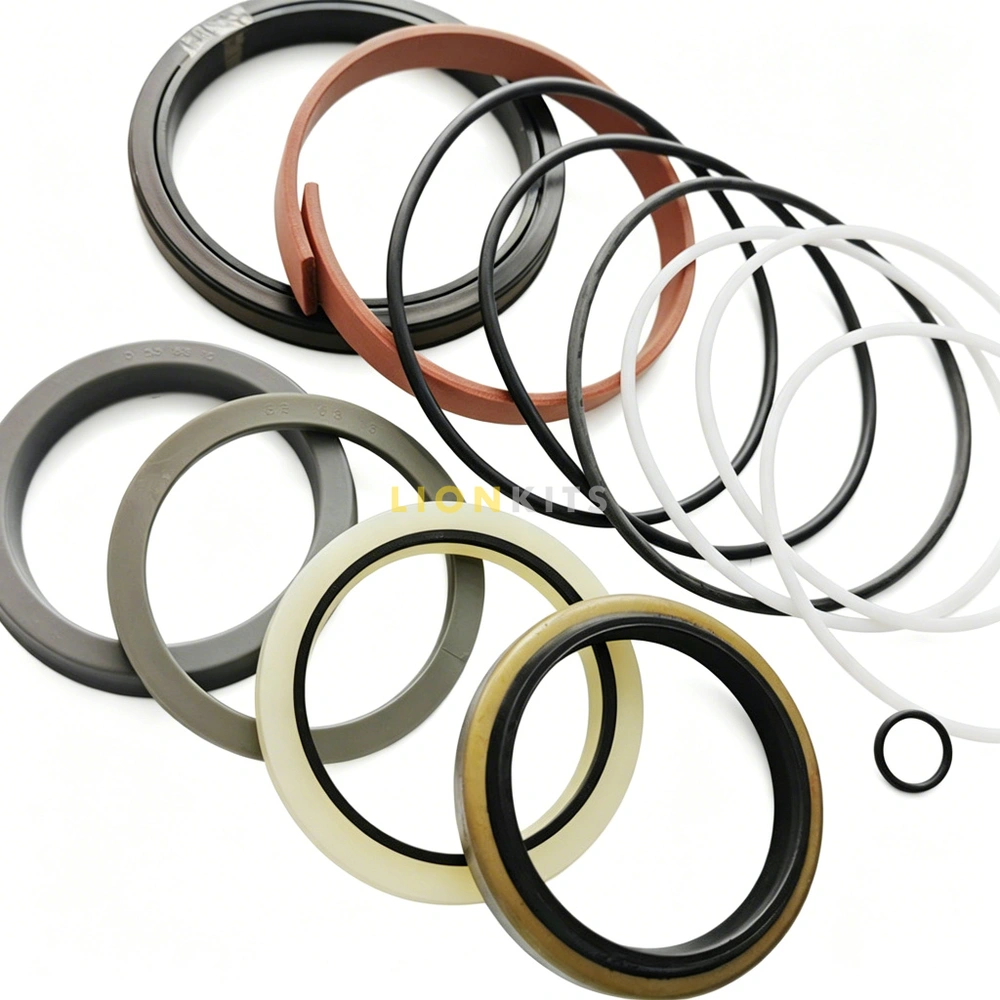

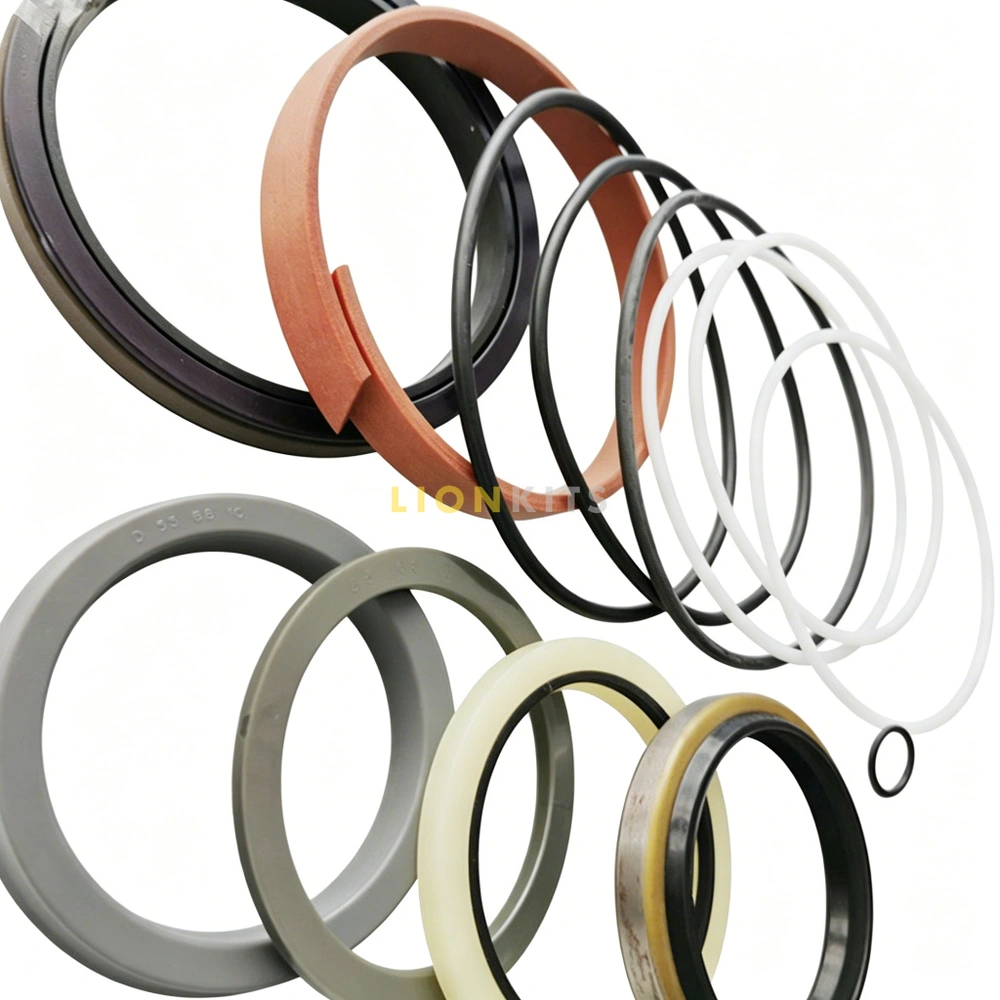

• Kit Inclusions: Dynamic Rod U-Cup Seals, Buffer Seals, Piston Wear Rings, Double-Lip Scraper Wiper, O-Rings, and Anti-Extrusion Backup Rings

Key Material Science & Performance Features

• High-Modulus Polyurethane (TPU) U-Cups: Retains dynamic lip memory under heavy cyclic pressure spikes during continuous trenching and hoisting without splitting.

• High-Temp Viton (FKM) Energizers: Keeps dynamic seal lips energized against gland walls during high oil thermal spikes in heavy summer operations.

• Anti-Extrusion Bronze-PTFE Wear Rings: Absorbs lateral side-loads, prevents piston-to-barrel scoring, and stops cross-chamber fluid bypass.

• Heavy-Duty Scraper Wiper: Actively strips mud, wet clay, gravel dust, and moisture from the chrome rod surface before foreign particles enter the gland.

Field Service & Rebuild Tips for Equipment Mechanics

💡 Fleet Maintenance Tip:

Boom sinking or drift on the CAT 305E is commonly caused by internal hydraulic oil bypassing degraded PTFE piston seals during overhead holding. When rebuilding the boom cylinder using the 277-3395 kit, inspect the inner cylinder barrel for longitudinal scratching and verify that the piston rod is perfectly straight. Always replace the wear rings concurrently with the dynamic rod and piston seals to absorb side-load chatter and extend rebuild service life.

Q&A

• Q: Is seal kit 277-3395 compatible with other CAT excavator models?

  A: Part number 277-3395 / 2773395 is engineered specifically for the boom cylinder on the CAT 305E. Always cross-reference your machine serial number or cylinder housing part number before installation to confirm fitment.

• Q: What are the primary failure symptoms indicating a CAT 305E boom cylinder needs new seals?

  A: Key indicators include boom drift (the arm slowly dropping while holding a load), visible hydraulic oil weeping past the rod wiper, slow boom hoist response, or elevated hydraulic oil temperatures caused by internal bypass.
