CAT 325C Excavator Stick Cylinder Seal Kit 259-0637

Heavy-Duty Stick Cylinder Seal Overhaul Kit for Caterpillar 325C Excavators | OEM Part: 259-0637 / 2590637

Restoring Heavy Digging Breakout Force & Hydraulic Control

The stick (dipper) cylinder on 25-ton class excavators endures severe cyclic digging shockwaves, continuous pressure spikes during bucket crowding, and constant exposure to abrasive grit. On the Caterpillar 325C, degradation of the dynamic stick cylinder seals leads to stick drift, reduced arm crowd force, sluggish cycle times, and external fluid weeping past the cylinder head gland.

Our 259-0637 Hydraulic Cylinder Seal Kit provides a comprehensive rebuild solution, replacing worn dynamic rod seals, piston rings, and wipers with heavy-duty mining and earthmoving-grade elastomers engineered for strict pressure containment and long service life.

Technical Specifications & System Cross-Reference

• Brand Compatibility: Caterpillar / CAT Equipment

• Target Machinery Application: Caterpillar 325C Track Excavator

• Specific Cylinder Circuit: Stick / Dipper Arm Hydraulic Cylinder Assembly

• Primary OEM Part Numbers: 259-0637 / 2590637

• Internal Catalog SKU: 2590637-CAT-325C

• Material Science Matrix: Mining-Grade TPU (Hydrolysis-Resistant) + High-Temp Viton (FKM) + Bronze-Filled PTFE + Industrial NBR

• Dynamic Pressure Rating: Rated for continuous load holding and peak shock spikes up to 250+ Bar (3625+ PSI)

• Temperature Operational Limit: -30°C to 120°C (-22°F to 248°F)

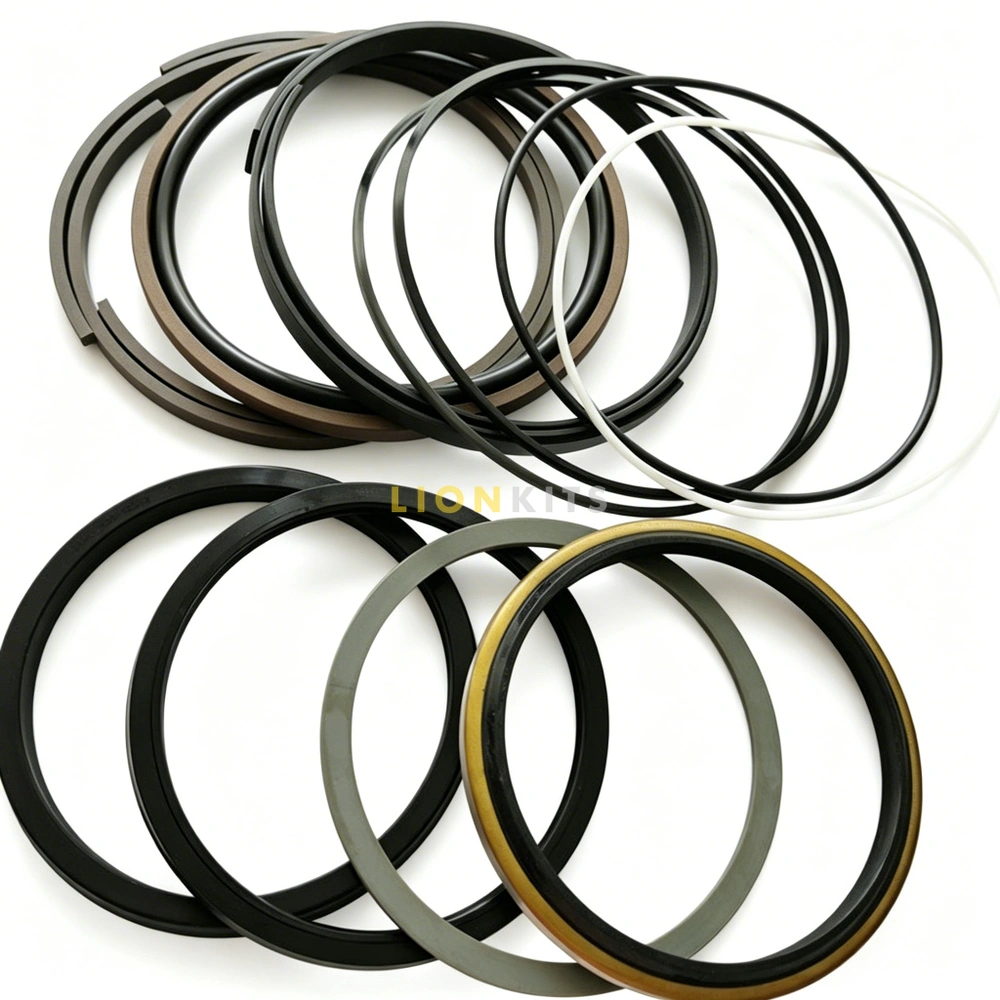

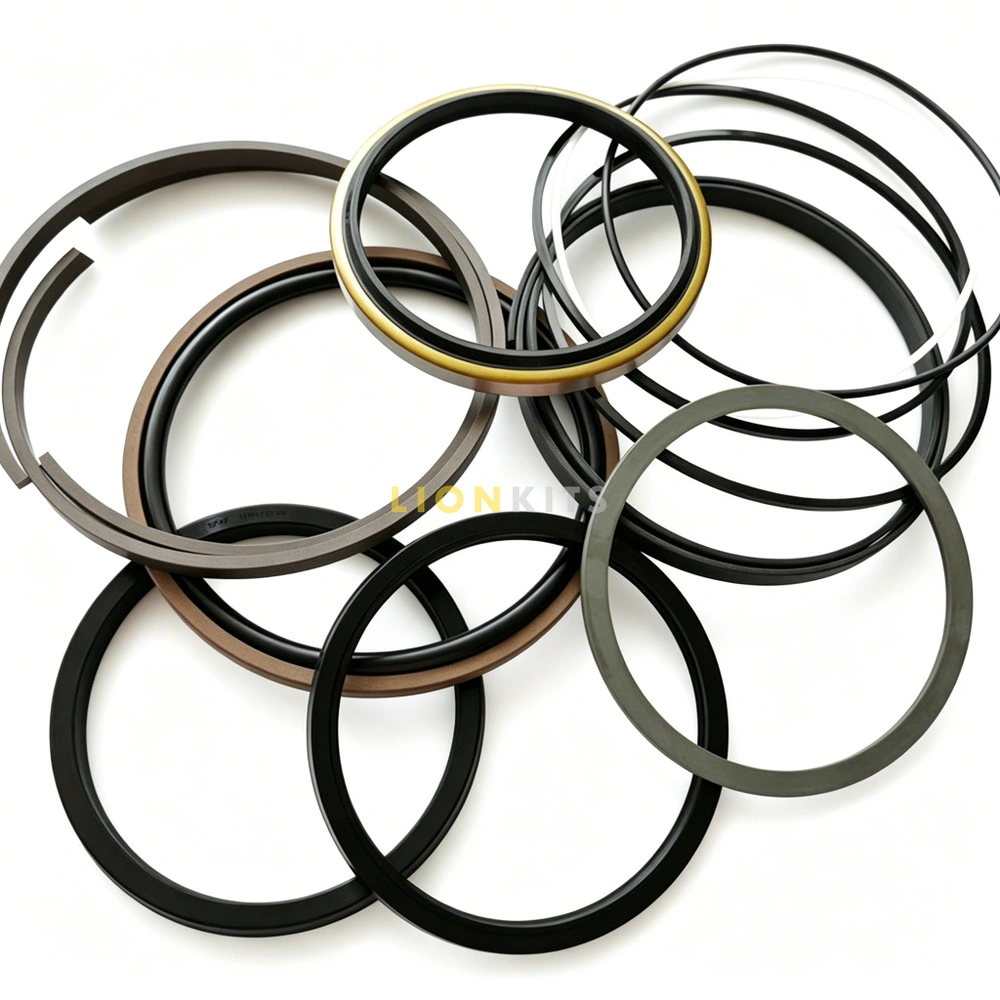

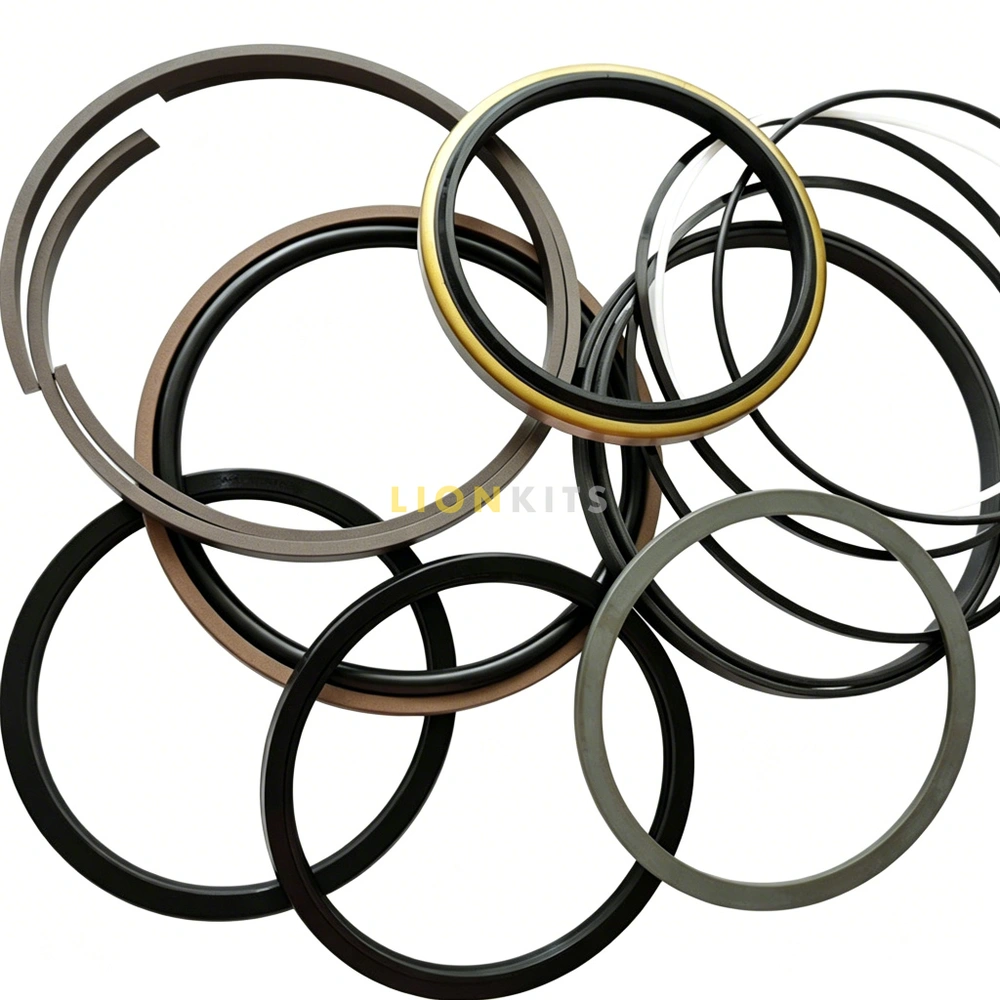

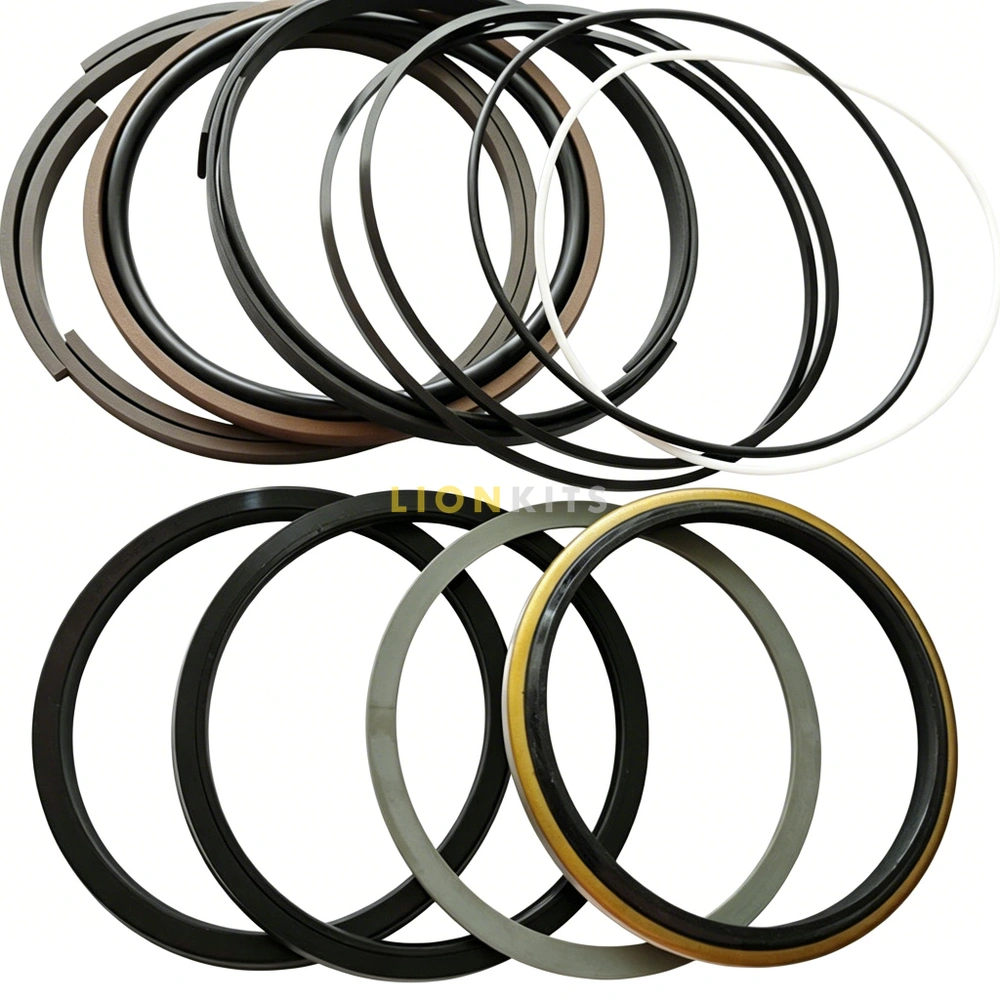

• Kit Inclusions: Dynamic Rod U-Cup Seals, Buffer Seals, Piston Wear Rings, Double-Lip Scraper Wiper, O-Rings, and Anti-Extrusion Backup Rings

Key Material Science & Performance Features

• High-Modulus Polyurethane (TPU) U-Cups: Retains dynamic lip memory under heavy cyclic pressure shockwaves during continuous trenching and rock digging without tearing.

• High-Temp Viton (FKM) Energizers: Keeps dynamic seal lips energized against gland walls during severe hydraulic oil heat spikes in heavy summer operations.

• Anti-Extrusion Bronze-PTFE Wear Rings: Absorbs lateral side-loads, prevents piston-to-barrel metal scoring, and eliminates cross-chamber fluid bypass.

• Heavy-Duty Scraper Wiper: Actively strips mud, wet clay, gravel dust, and moisture from the chrome rod surface before foreign particles enter the gland.

Field Service & Rebuild Tips for Equipment Mechanics

💡 Fleet Maintenance Tip:

Stick drift on the CAT 325C is commonly caused by internal hydraulic oil bypassing degraded PTFE piston seals during heavy arm loading. When servicing the stick cylinder using the 259-0637 kit, inspect the inner cylinder barrel for longitudinal scratching and check the chrome rod for axial distortion. Always replace the wear rings concurrently with the primary rod and piston seals to absorb side-load chatter and double the rebuild service life.

Q&A

• Q: Is seal kit 259-0637 compatible with other CAT excavator models?

  A: Part number 259-0637 / 2590637 is engineered specifically for the stick cylinder on the CAT 325C. Always cross-reference your machine serial number or cylinder housing part number before installation to confirm fitment.

• Q: What are the primary failure symptoms indicating a CAT 325C stick cylinder needs new seals?

  A: Key indicators include stick drift (the arm slowly dropping or extending under load), visible hydraulic fluid weeping past the rod wiper, slow arm curling speed, or elevated hydraulic oil temperatures caused by internal bypass.
