11709624 Volvo Dipper Cylinder Seal Kit – Restore Your Backhoe’s Reach & Digging Power

11709624 – The Dipper Cylinder Seal Kit That Keeps Your Reach Long and Strong

The dipper cylinder is the backbone of your Volvo backhoe’s reach. It controls the “arm” or “stick” that extends from the boom to the bucket, governing everything from trench depth to dump height. When seals fail here, you lose digging power, control precision, and sometimes even the ability to curl a full bucket.

This 11709624 kit is engineered specifically for the dipper cylinder on Volvo BL60 and compatible models. We’ve cross-referenced it against multiple supplier databases to confirm the exact specifications: 60mm rod diameter with a 110mm bore, using the I-UB-10 seal profile .

What You Get (and Who It Fits):

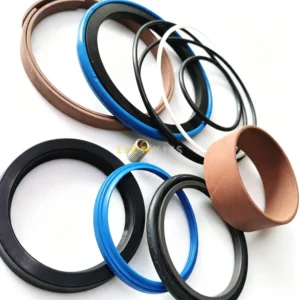

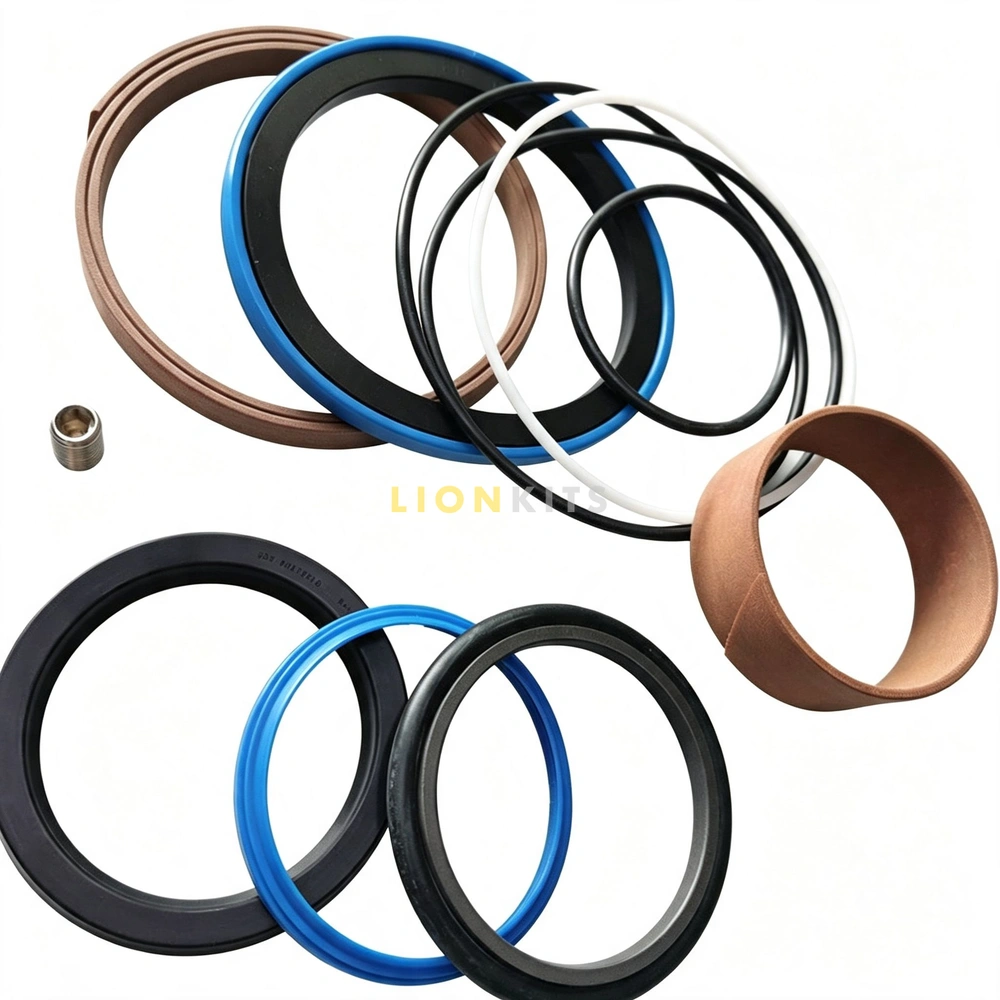

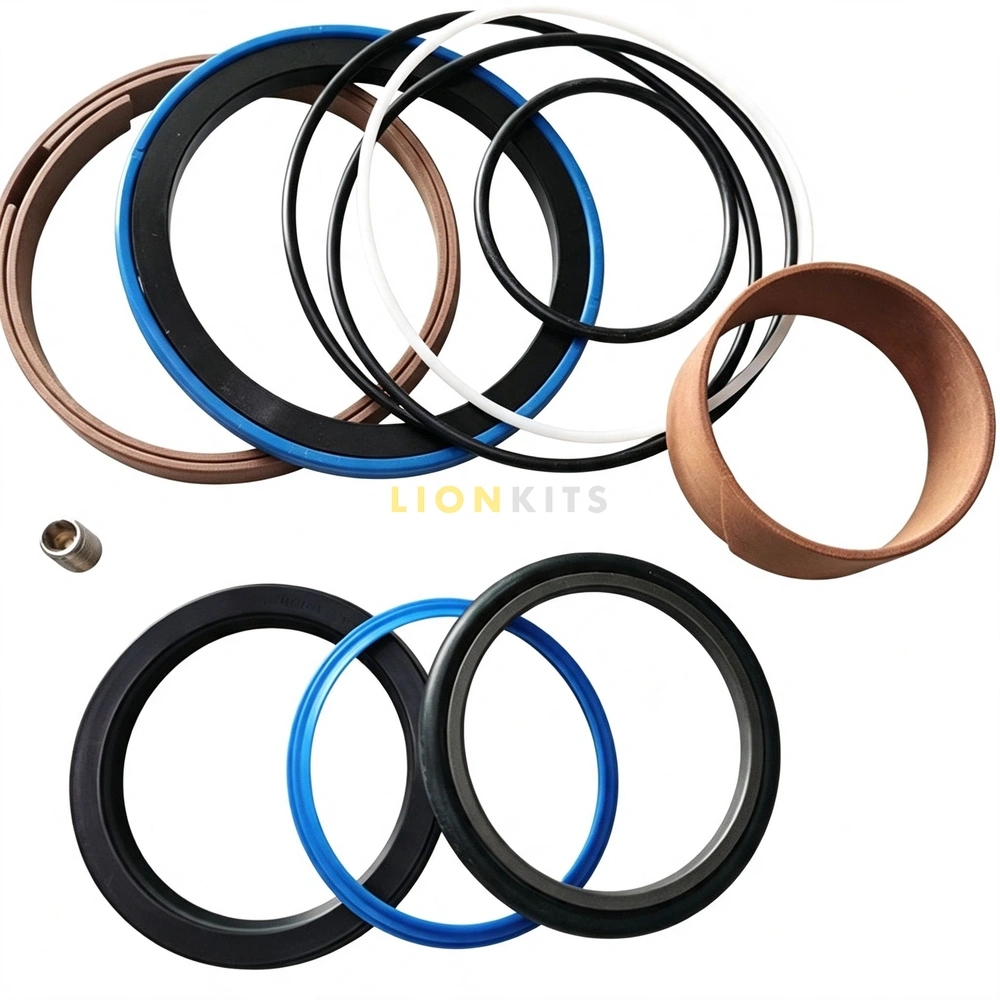

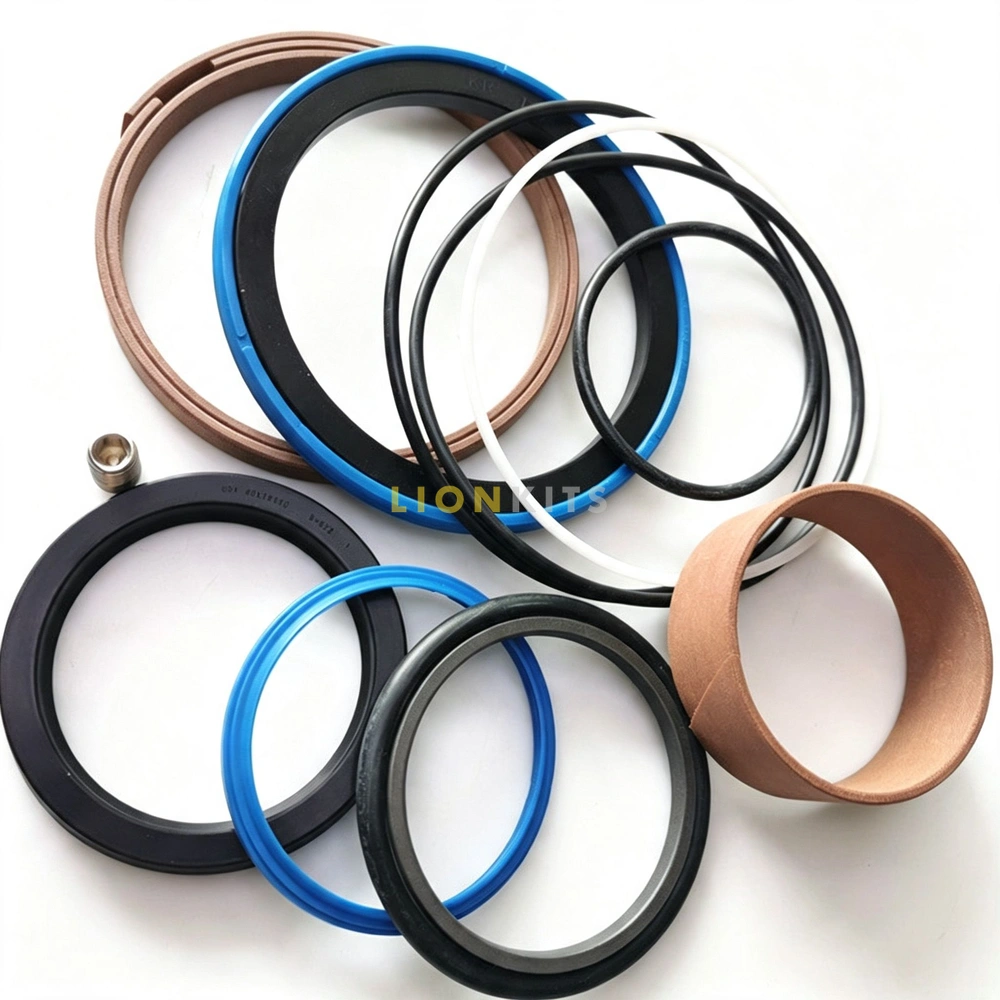

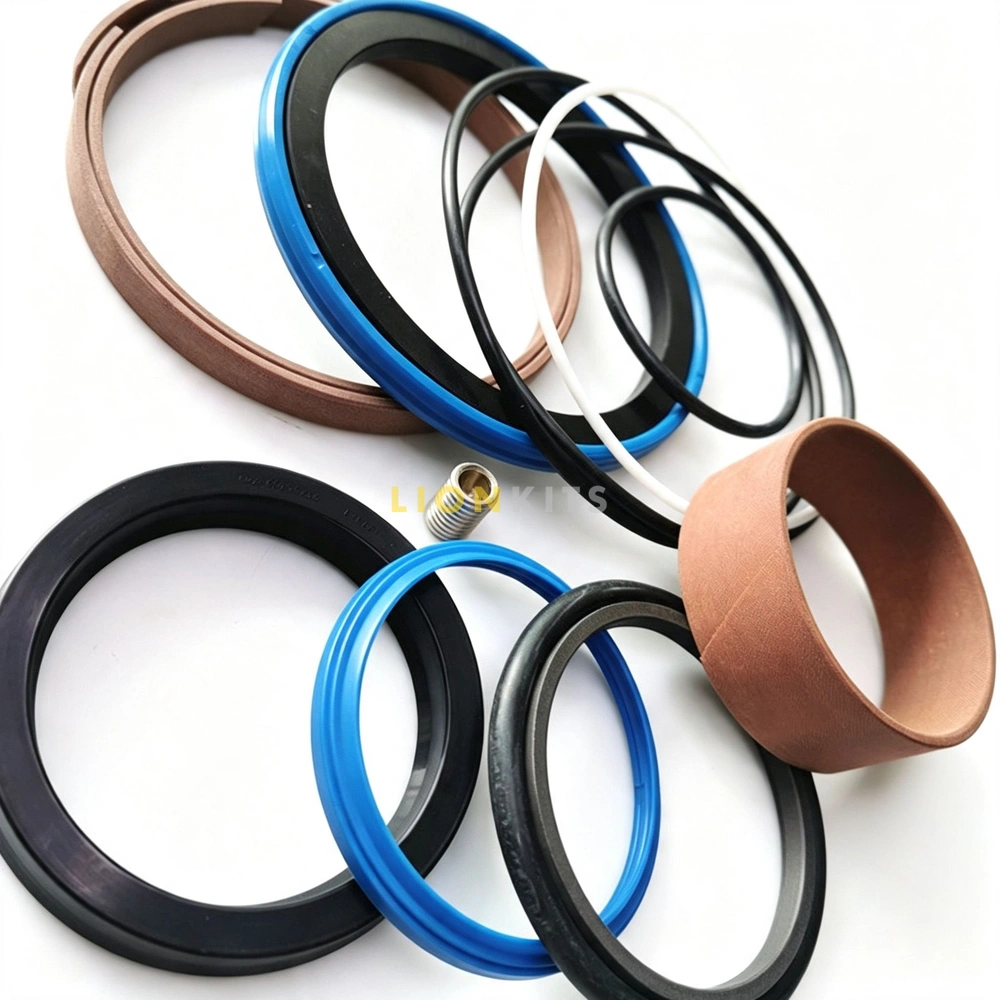

Inside the box: a complete set of rod seals, piston seals, O-rings, backup rings, and wipers—everything needed for a single cylinder rebuild.

Compatibility has been verified across a broader range than the spec sheet suggests:

• BL60 (Serial 10001 and after)

• BL61 (Serial 10001–11458)

• BL61 Plus (Serial 10001 and after)

• BL70 (Serial 10001 and after)

• BL71 (Serial 10021 and after)

• BL71 Plus (Serial 10495 and after)

One part number. Six machine models. That’s not just a seal kit—that’s inventory efficiency.

⚠️ Fitment Check: While this kit covers multiple models, always verify your machine’s serial number and original cylinder part number. Dipper cylinder applications can vary between configurations, so confirming your specific setup is the safest bet.
