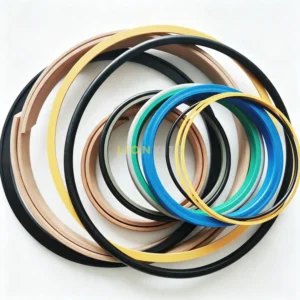

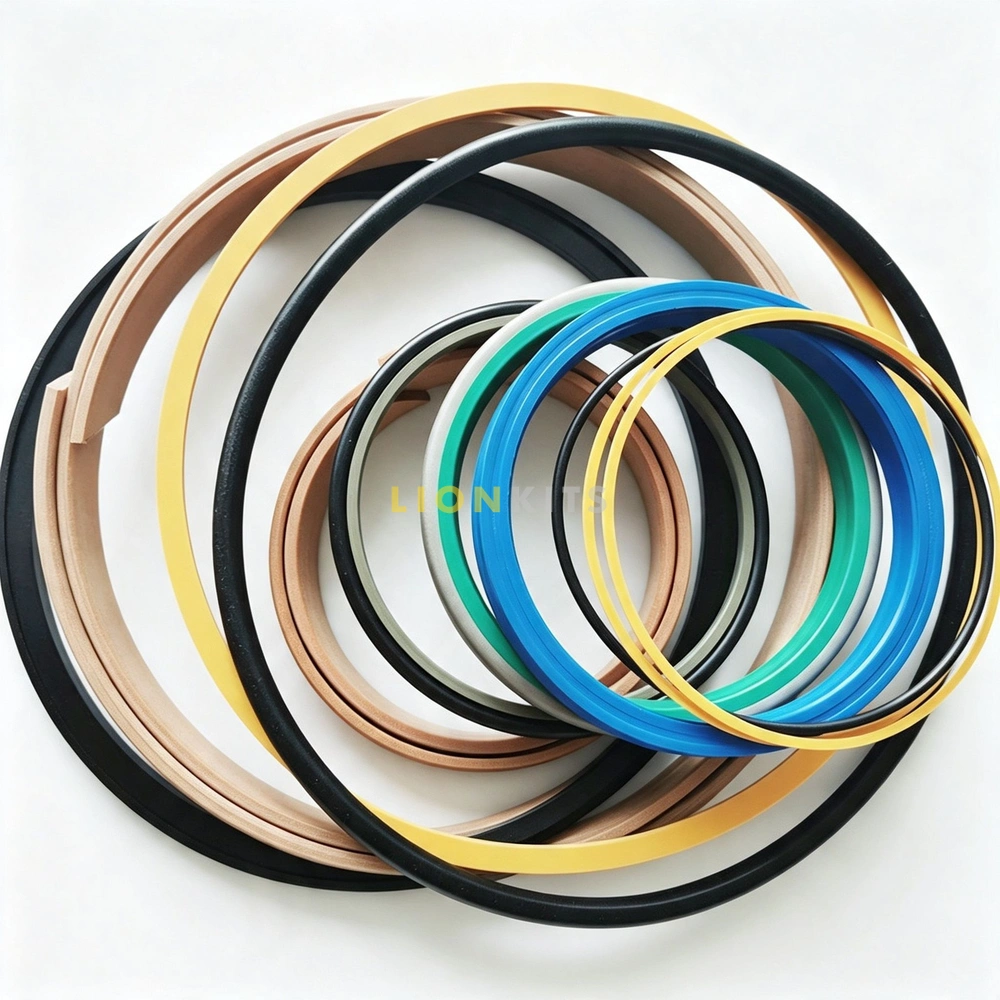

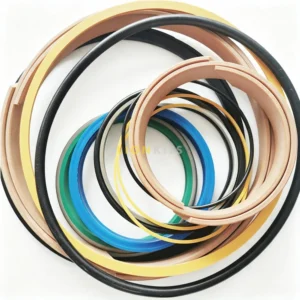

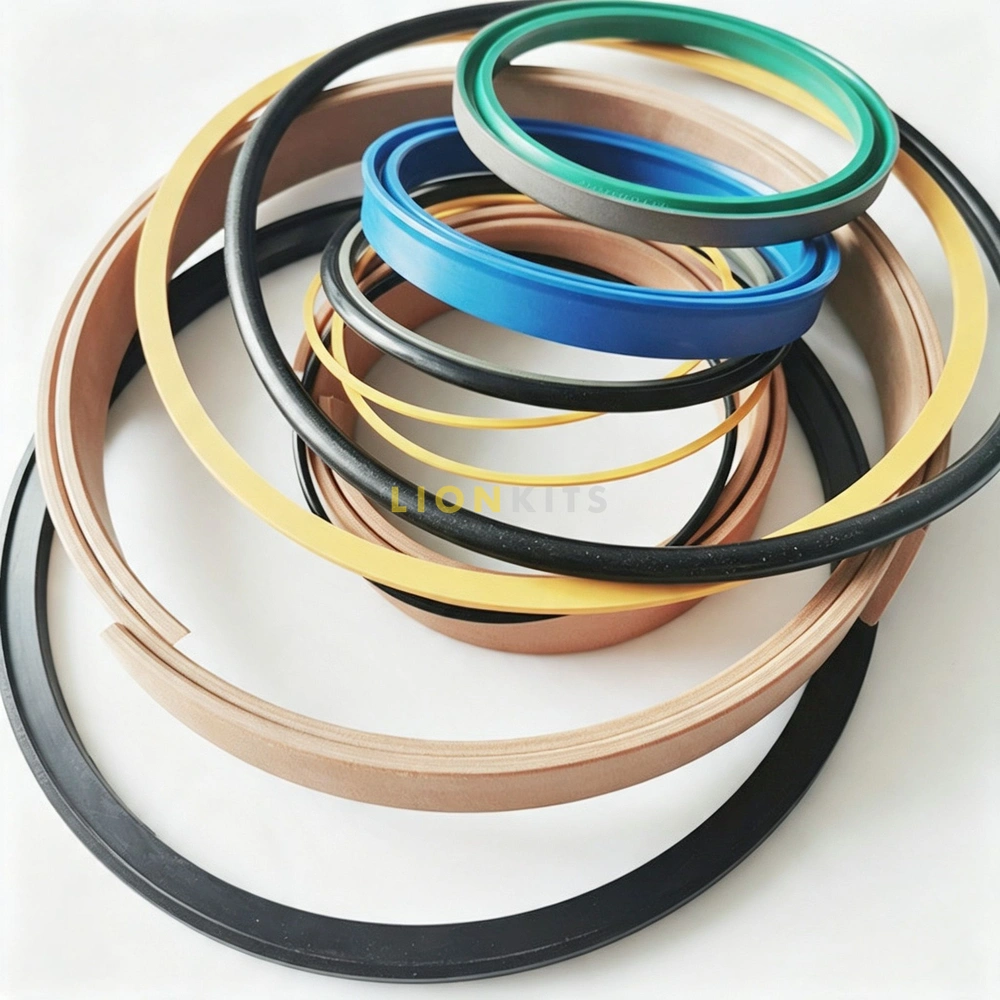

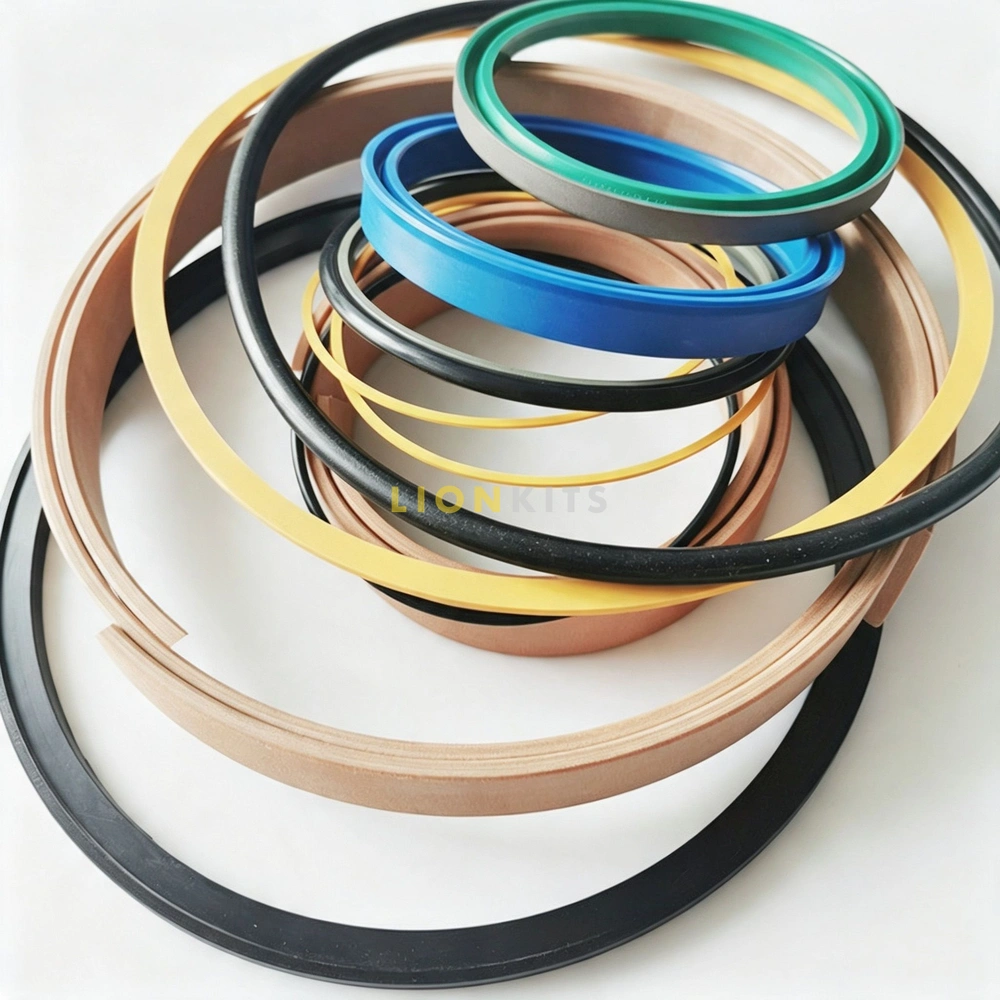

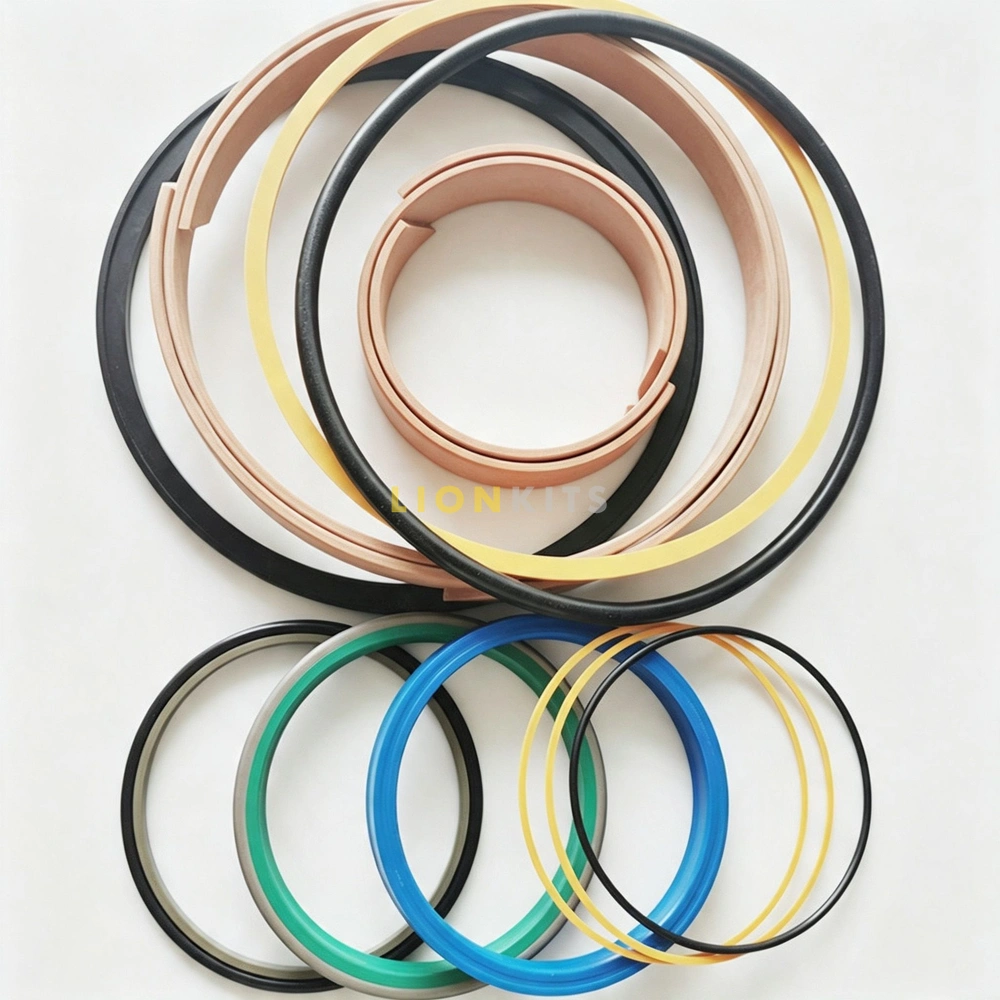

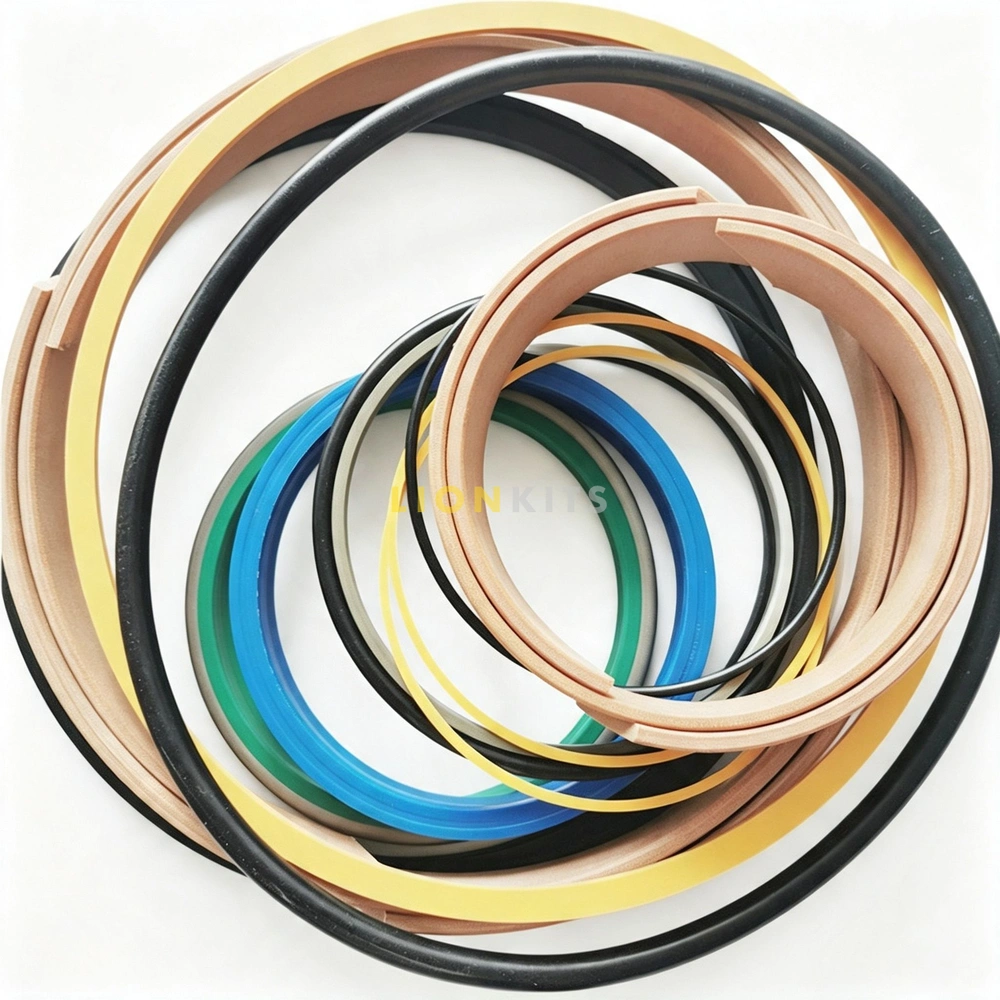

11709026 Hydraulic Tilt Cylinder Seal Kit — Volvo L150E / L150F Wheel Loader
The 11709026 seal kit is built to a common tilt cylinder profile shared across the Volvo L150E and L150F platforms — it covers cylinder part numbers 11107256, 11107386, 11107860, and 11107861, all of which use the same 110mm piston rod and 230mm cylinder bore. In practice, this means the kit isn’t limited to a single cylinder revision: if your machine’s tilt cylinder carries any of these part numbers, this is the correct kit regardless of exactly which one is stamped on your cylinder.
The L150E itself is a 23.3-ton class loader, and its tilt cylinder is the largest-bore cylinder on the machine — it has to hold the bucket at a fixed angle against several tons of loaded material without drifting, which is why bore size and seal quality matter more here than on smaller cylinders like the steering or lift cylinders.
Key Features and Benefits
Broad Cylinder Coverage
Matched to the 110mm rod / 230mm bore profile shared by cylinder P/N 11107256, 11107386, 11107860, and 11107861, covering multiple production revisions across L150E and L150F without needing a separate kit for each.
Superior Material Compound
Manufactured from high-tensile Polyurethane (PU) and NBR compounds to withstand the sustained high-pressure holding loads and friction generated by a bucket-angle-holding tilt cylinder.
Excellent Wear Resistance
Formulated to resist tearing and abrasion in high-cycle loading environments such as quarries and log yards.
Advanced Protection
Includes a robust wiper seal that excludes dirt, grit, and moisture, protecting the internal cylinder rod from scoring.
Complete Repair Set
Includes all necessary rod seals, piston seals, buffer seals, back-up rings, and O-rings for a professional-grade overhaul.
Product Specifications
- Part Number: 11709026
- Compatible Cylinder P/N: 11107256, 11107386, 11107860, 11107861 (Tilt Cylinder)
- Compatible Models: Volvo L150E, L150F Wheel Loader
- Piston Rod Diameter: 110mm
- Cylinder Bore Diameter: 230mm
- Component Type: Full Hydraulic Sealing Service / Repair Kit
- Application: Construction, Quarrying, and Material Handling
Important Fitment Note
This kit covers multiple tilt cylinder part number revisions used across L150E and L150F production. Please confirm the part number stamped on your cylinder, or provide your machine’s serial number, so we can verify it falls within this kit’s compatible range before you order.
