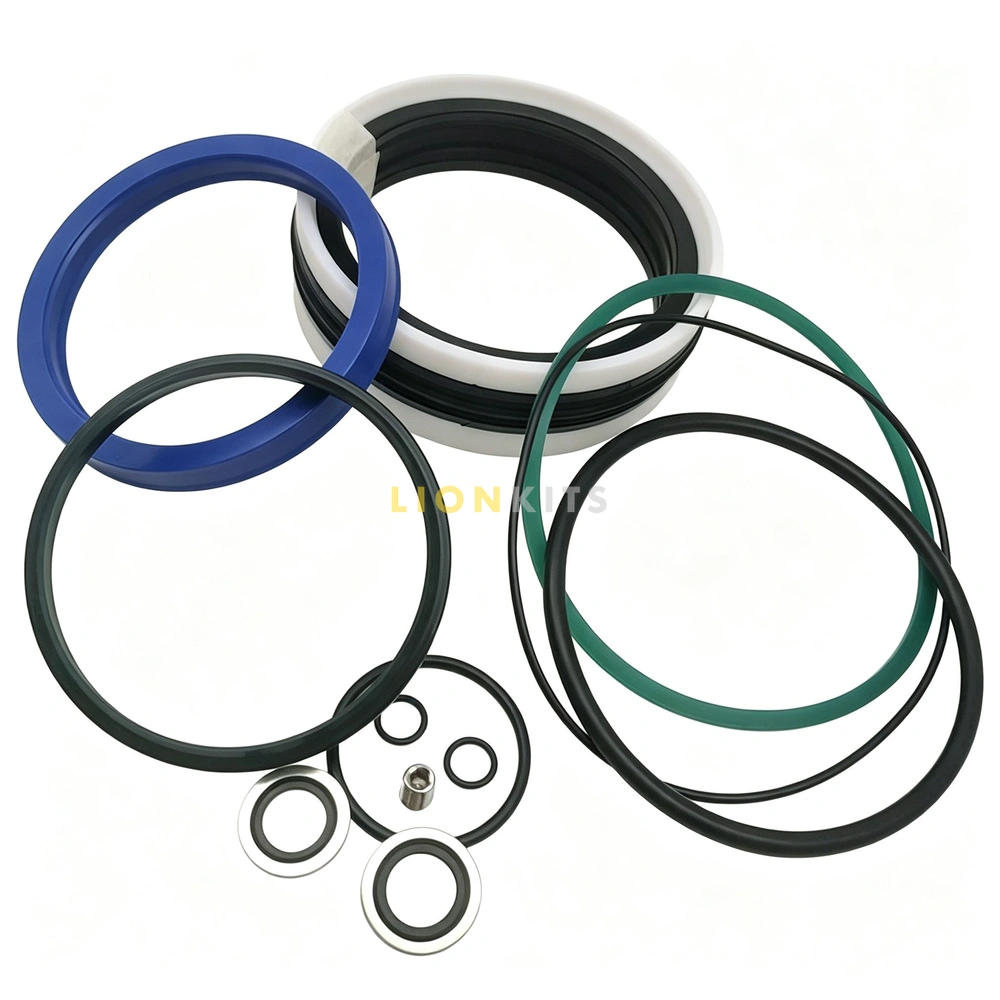

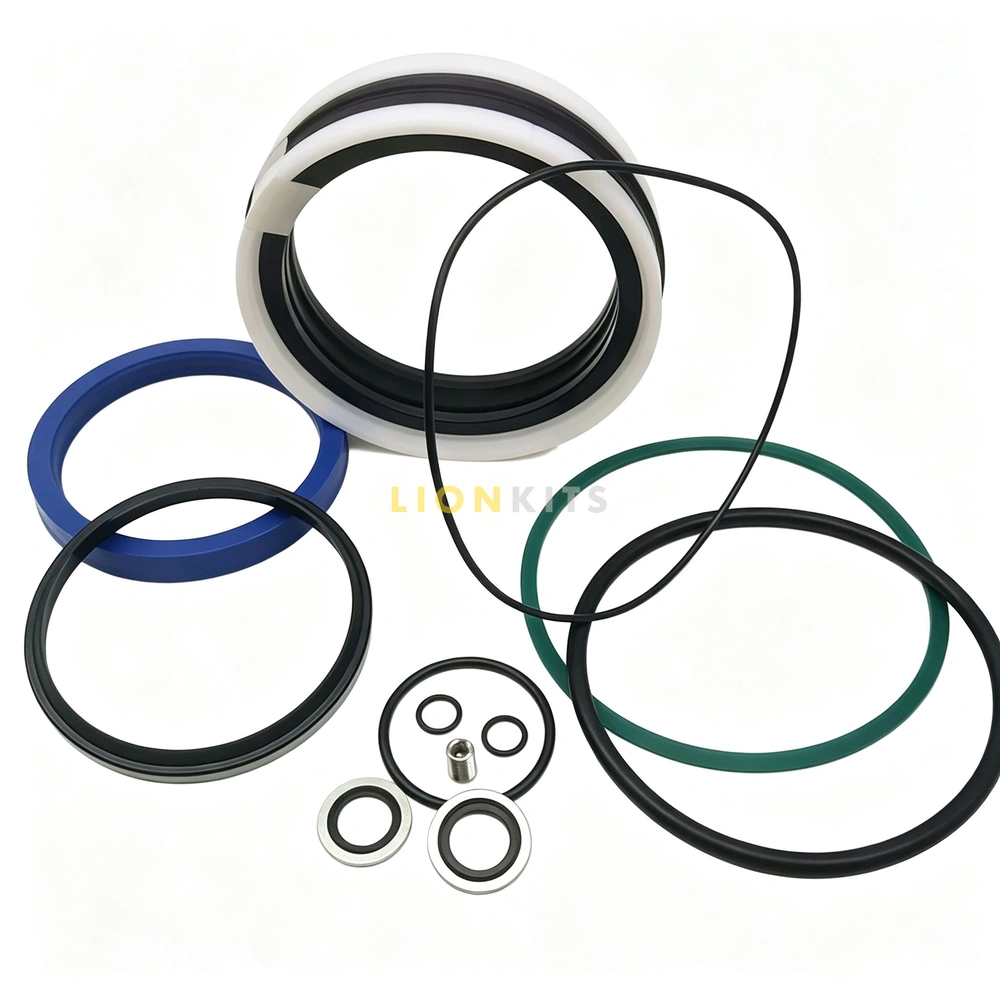

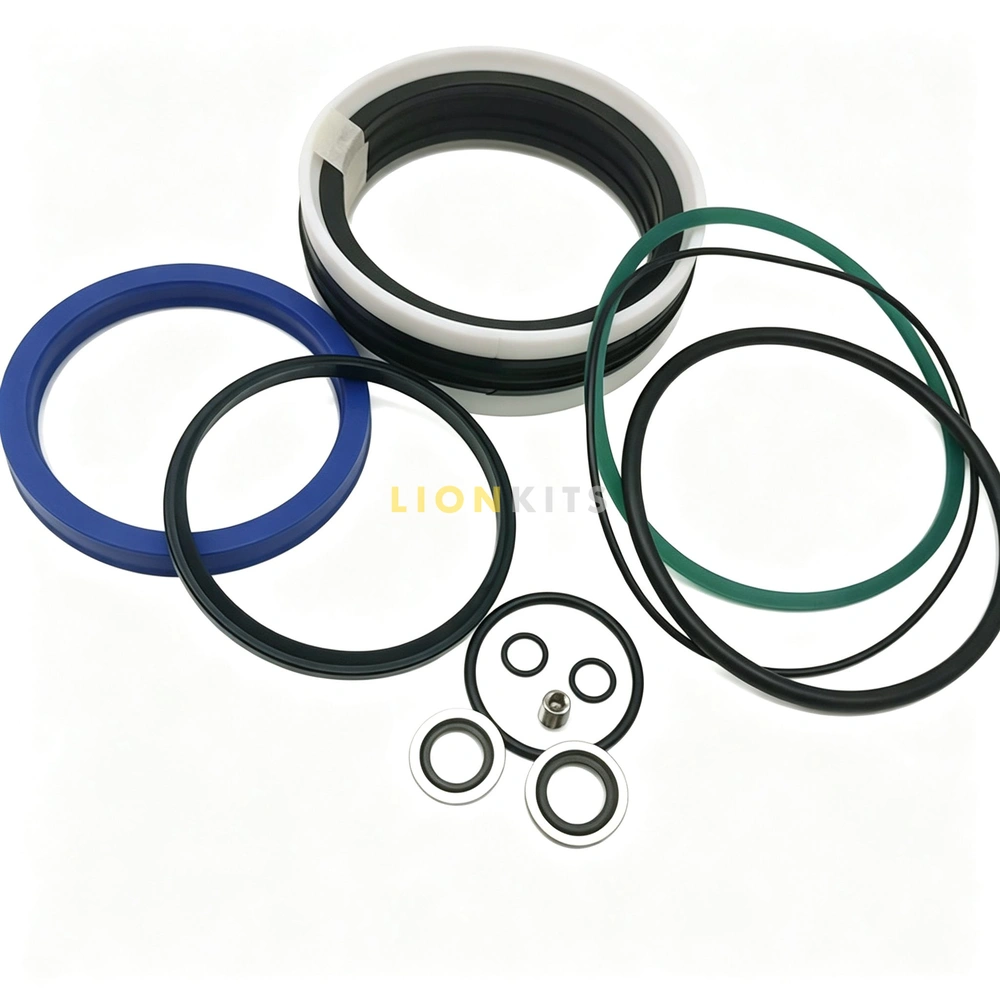

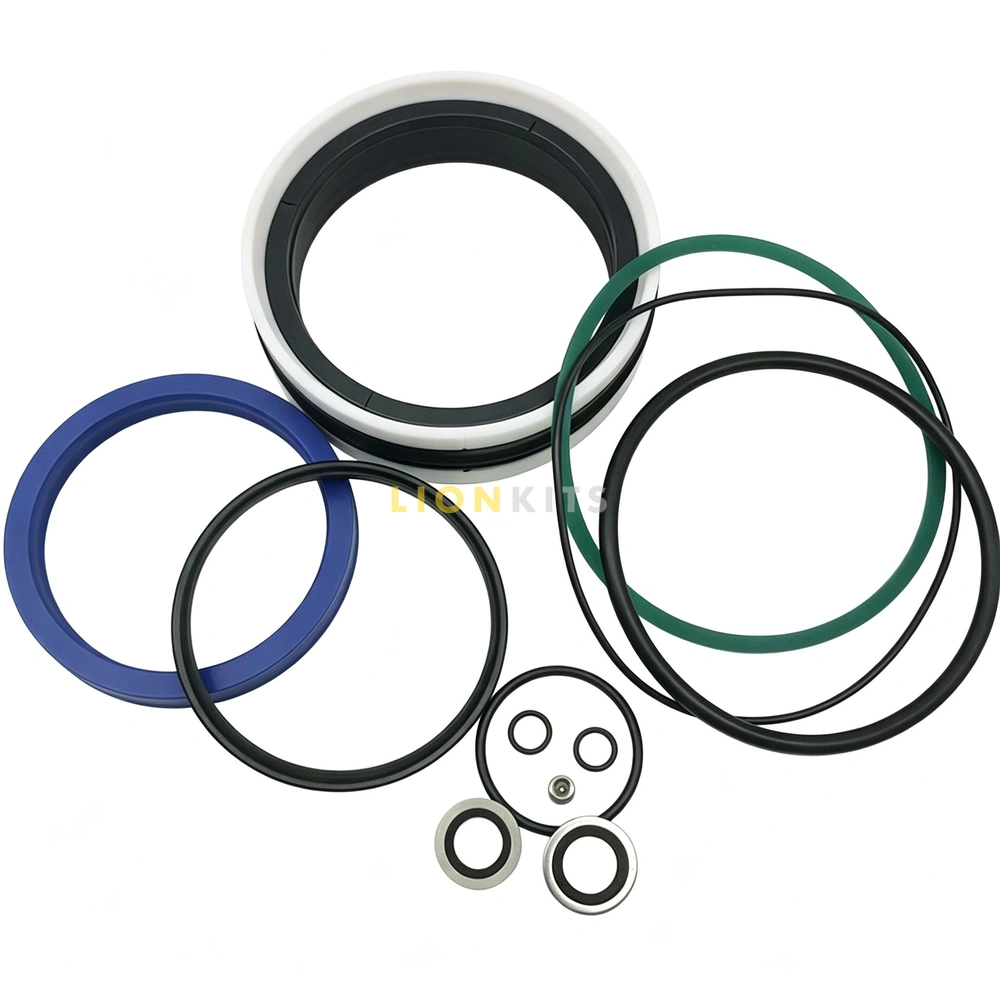

Epiroc Boomer 282 Boom Cylinder Seal Kit 9121669650

Boom Hydraulic Cylinder Overhaul Service Kit for Epiroc Boomer 282 Tunneling Jumbos | OEM Part: 9121669650

Engineered for Underground Tunneling & Face Drilling Accuracy

In underground development and tunneling operations, the twin-boom Epiroc Boomer 282 jumbo relies on hydraulic boom cylinders for high-precision face positioning, lift, extension, and roll-over angle control. Over extended operating hours, heavy cantilever loads and hydraulic pressure spikes cause dynamic seals to degrade, leading to boom creep, precise alignment loss, and external fluid weeping.

Our 9121669650 Boom Cylinder Seal Kit is specifically compounded from high-tier Polyurethane (TPU), Fluorocarbon (FKM/Viton), and bronze-filled PTFE to restore zero-leak pressure containment, ensuring steady boom positioning and continuous drilling productivity.

Technical Specifications & Equipment Fitment

• Brand & Equipment Compatibility: Epiroc Mining & Rock Excavation Systems

• Specific Rig Model Fitment: Epiroc Boomer 282 Underground Face Drilling Jumbo Series

• Primary OEM Part Number: 9121669650 (Cross-ref: 9121 6696 50)

• Internal Catalog SKU: 9121669650-BOOMER-282

• Material Composition Matrix: Mining-Grade TPU (Hydrolysis-Resistant) + High-Temp Viton (FKM) + Bronze-Filled PTFE + Heavy-Duty NBR

• Dynamic Operating Pressure Rating: Handles continuous static holding & peak dynamic pressure spikes up to 250+ Bar (3600+ PSI)

• Thermal Operating Range: -30°C to 120°C (-22°F to 248°F)

• Primary Hydraulic Applications: Boom Lift Cylinders, Boom Extension Cylinders, Boom Swing Cylinders, and Feed Extension Assemblies

Key Material Science & Performance Advantages

• High-Modulus Polyurethane (TPU) Rod Seals: Built to withstand severe cyclic mechanical fatigue, retaining dynamic lip tension and radial memory even under continuous heavy cantilever loads.

• High-Temperature Viton (FKM) Energizers: Maintains elastic seal recovery during intense heat spikes caused by continuous hydraulic maneuvering in enclosed tunnel headings.

• Anti-Extrusion PTFE Guide & Wear Rings: Provides ultra-low friction guidance along the piston, absorbing lateral thrust forces, dampening chatter, and preventing internal cross-chamber pressure leakage.

• Severe-Duty Double-Lip Scraper Wiper: Seals the gland against quartz dust, rock slurry, and flushing water, preventing abrasive particulates from scratching internal chrome rods.

Q&A

• Q: Which Epiroc jumbo models utilize the 9121669650 boom hydraulic cylinder seal kit?

  A: Part number 9121669650 is designed for the boom hydraulic cylinders (lift, extension, or swing) on Epiroc Boomer 282 underground tunneling and face-drilling jumbos.

• Q: What are the primary indicators that a Boomer 282 boom cylinder requires a seal overhaul?

  A: Common symptoms include boom sag (cylinder drift during face positioning), visible oil weeping around the cylinder rod gland, or loss of holding power when supporting heavy rock drills.

Maintenance & Rebuild Guidelines for Site Mechanics

💡 Operational Service Advice:

Cantilever boom cylinders experience high lateral thrust loads during positioning. When rebuilding cylinders on Epiroc Boomer 282 rigs using the 9121669650 kit, thoroughly inspect the chrome piston rod for bending, scoring, or side-wear. Always replace worn guide rings concurrently with dynamic U-cups to prevent premature seal lip wear and maintain exact drilling alignment.
