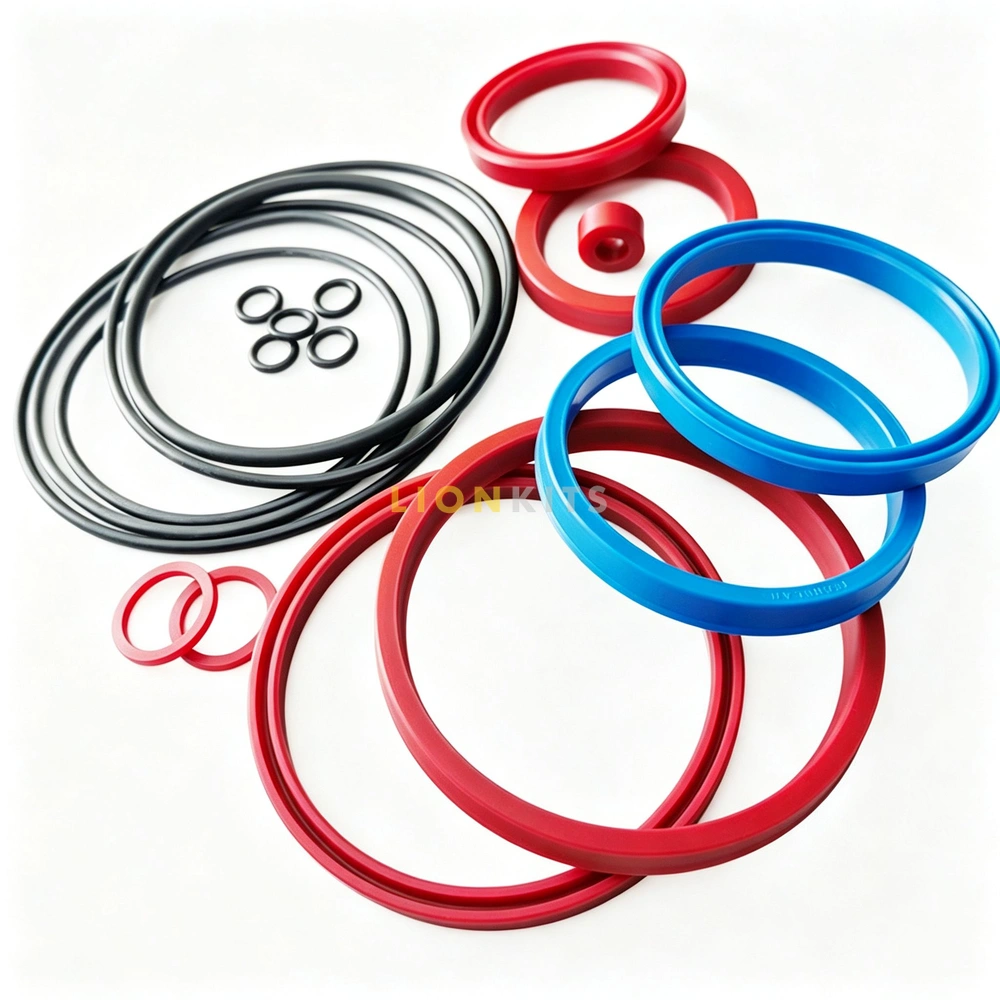

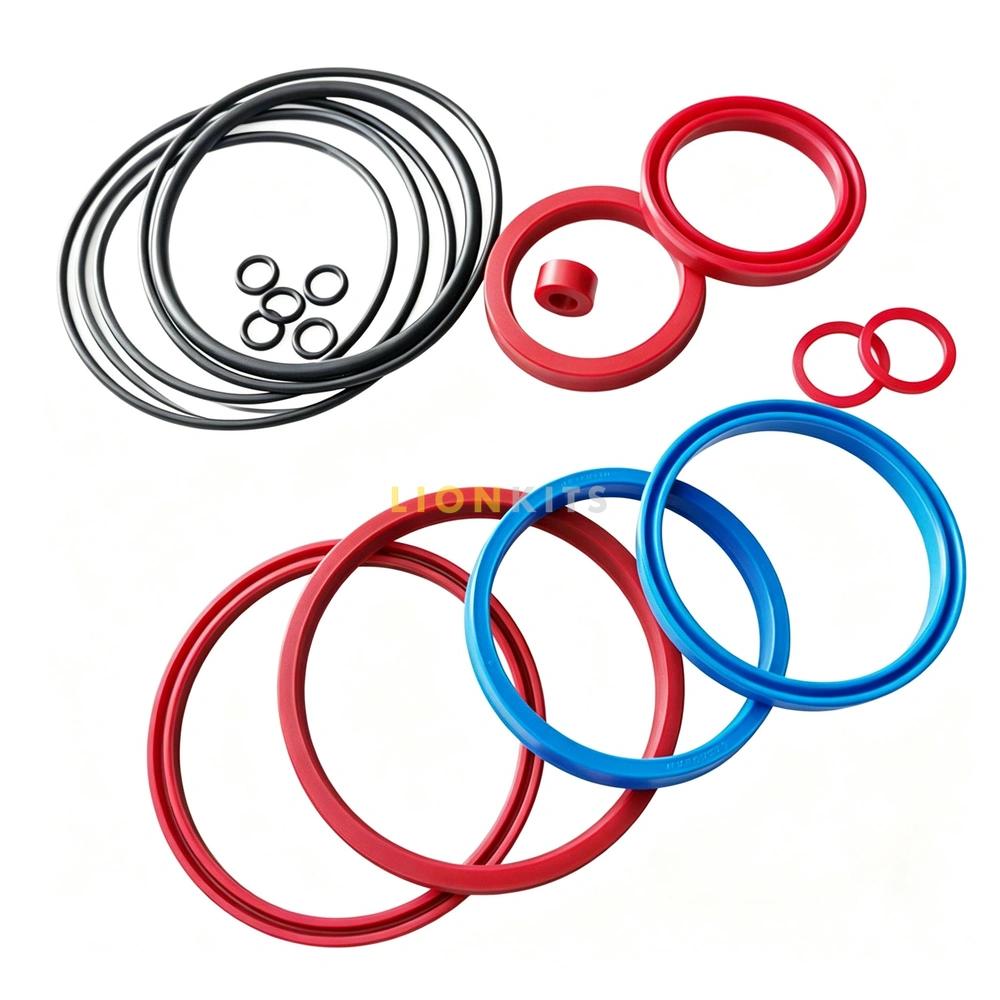

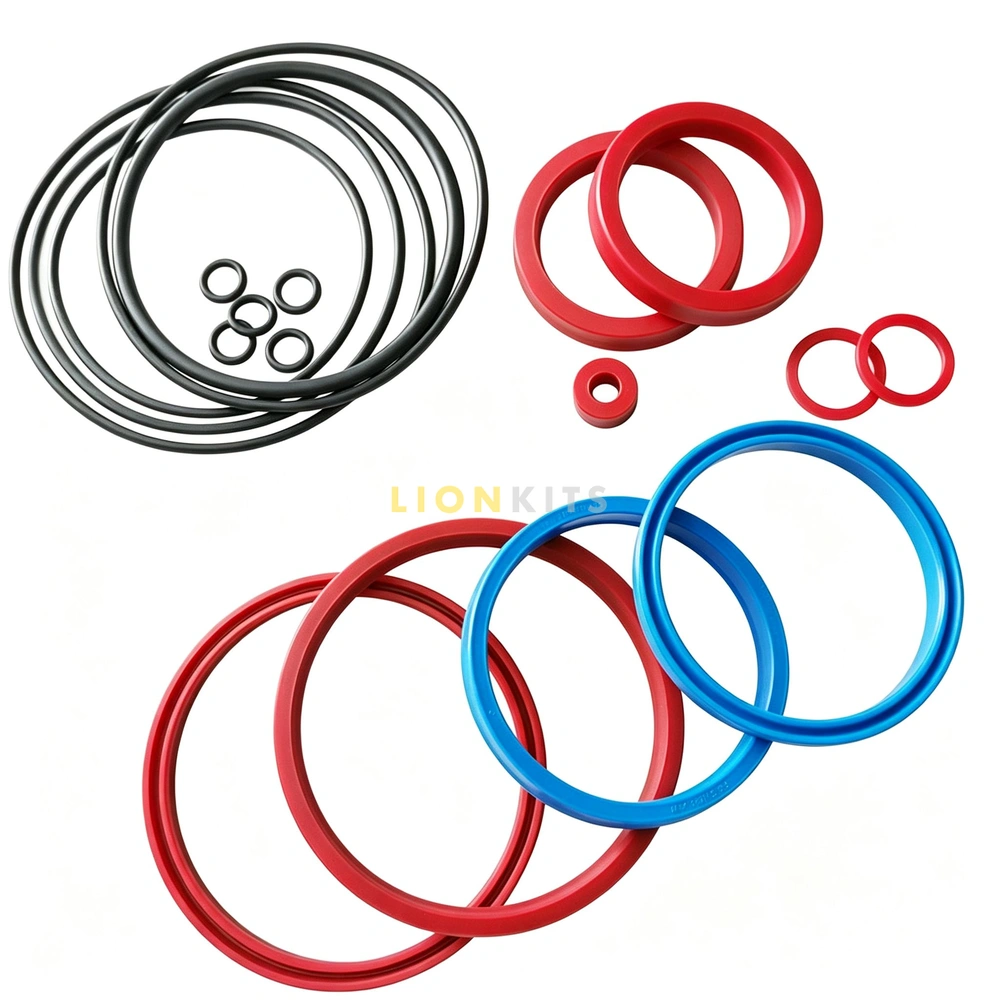

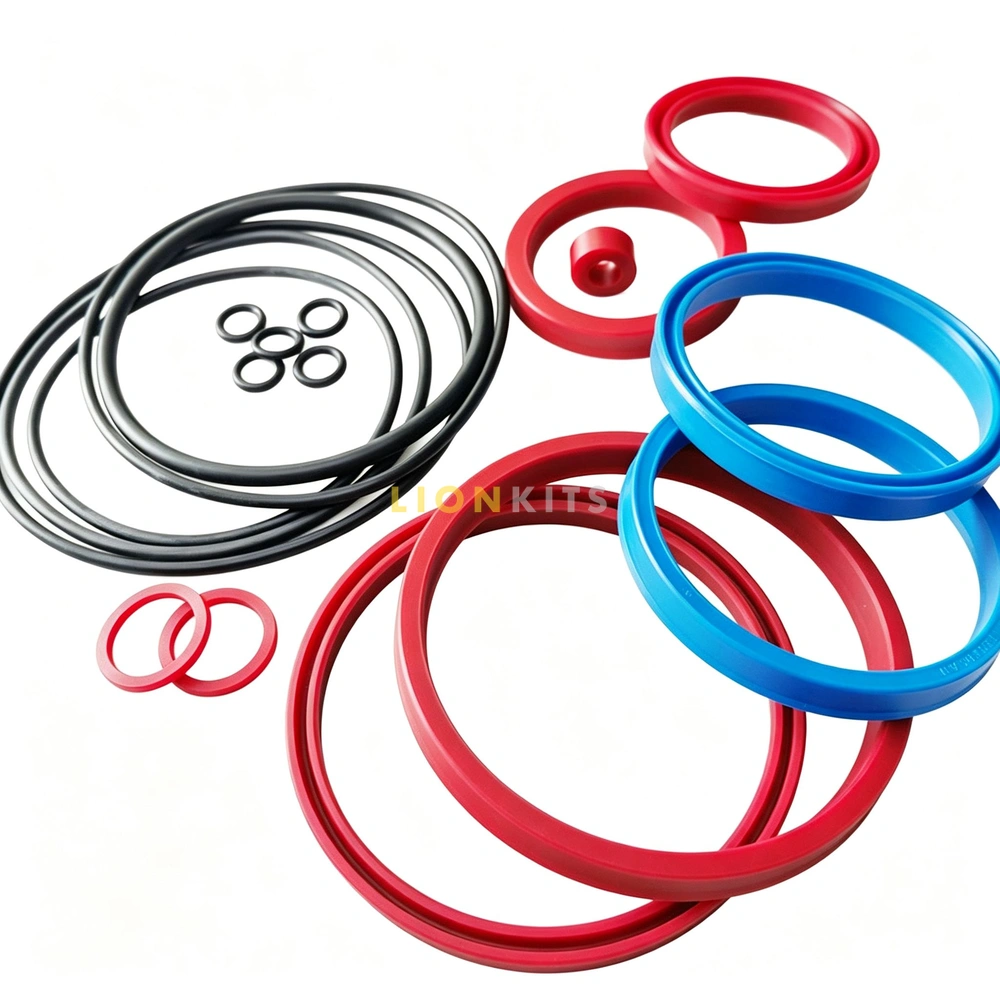

Montabert HC120 HC150 Drifter Seal Kit 86220621 86640349 86640307 86648508 Replacement

High-Performance Percussion Drifter Repair Seal Kit for Montabert HC120 & HC150 Top-Hammer Drills

Field Symptoms & Troubleshooting: When to Service Your Drifter

Montabert HC120 and HC150 hydraulic drifters deliver heavy kinetic impact energy across continuous drilling shifts. Over extended duty cycles, high-frequency pressure spikes and thermal friction weaken dynamic seal lips. Rebuilding your drifter housing with our 86220621 series seal kit resolves key operational failures:

• Drill Rate Drop (Low Penetration Speed): Internal fluid bypass past worn dampening or percussion seals starves the striking piston of hydraulic power.

• Hydraulic Oil Weeping at Shank Adapter: Oil leaking past the front nose indicates wiper breakdown and primary U-cup degradation.

• Excessive System Heating: Fluid aeration caused by internal pressure leaks increases operating temperatures across the hydraulic power pack.

• Percussion Chamber Chatter: Degraded guide and wear rings allow axial instability along the shank adapter, leading to rapid component wear.

Technical Specifications & Fitment Matrix

• Compatible Equipment Models: Montabert HC120 and Montabert HC150 Top-Hammer Hydraulic Drifters

• Primary OEM Part Numbers: 86220621

• Interchangeable Cross-Reference Part Numbers: 86640349, 86640307, 86648508

• Internal Catalog SKU: 86220621-HC120-150

• Seal Material Formulation: High-Modulus TPU (Polyurethane) + High-Temp FKM (Viton) + Bronze-Filled PTFE + Heavy-Duty NBR

• Dynamic Operating Pressure: Rated for continuous cyclic shock loads up to 230 Bar (3335 PSI)

• Thermal Performance Range: -25°C to 125°C (-13°F to 257°F)

• Target Worksite Environments: Hard-Rock Surface Bench Drilling, Tunneling Jumbos, Civil Foundation Anchoring, and Underground Production Drilling

Key Material Science & Engineering Features

• Mining-Grade Hydrolysis TPU U-Cups: Specially compounded to resist fluid hydrolysis, keeping dynamic sealing lips supple and energized despite high-frequency mechanical vibration.

• Thermal-Resilient Viton (FKM) O-Rings: Retains elasticity under intense frictional heat spikes, ensuring continuous radial loading against the drifter piston.

• Anti-Extrusion Bronze-PTFE Guide Rings: Provides smooth piston movement, absorbs radial thrust loads, and prevents scuffing between metallic components.

• Heavy-Duty Dirt Guard Scraper: Actively cleans the striking bar surface, keeping abrasive quartz dust, drill cuttings, and water slurry out of the main hydraulic circuit.

FAQS

• Q: Are part numbers 86220621, 86640349, 86640307, and 86648508 interchangeable for Montabert drifters?

  A: Yes. These part numbers represent overlapping OEM revisions and cross-references for the primary hydraulic seal overhaul kit used across Montabert HC120 and HC150 top-hammer rock drills.

• Q: How does this kit handle synthetic hydraulic fluids or flushing water in underground tunneling?

  A: The high-grade TPU and FKM (Viton) elastomer matrix is chemical-resistant, preventing swelling or hardening when exposed to synthetic hydraulic fluids, flushing additives, or acidic mine water.

On-Site Maintenance Recommendations for Drilling Crews

💡 Pro Service Tip:

High-frequency drifters require strict cleanliness during seal installation. When replacing seals using the 86220621 kit, always inspect the striking bar (shank adapter) contact face and driver bushings for ovalization or deep scratches. Installing fresh dynamic seals over a damaged or worn bushing will result in premature wiper cutting. Replace bushings and seals concurrently to ensure full service interval longevity.
