3128259254 Atlas Copco Drill Rig Seal Kit for Hydraulic cylinder 3128259243

Heavy-Duty Hydraulic Cylinder Seal Overhaul Kit for Atlas Copco Drilling Rigs | OEM Kit: 3128259254 (Cylinder: 3128259243)

Reliable Pressure Containment for Mining & Excavation Hydraulics

Underground mining and surface rock drilling impose continuous dynamic shock loads, severe thermal stress, and abrasive dust exposure on hydraulic cylinders. On Atlas Copco / Epiroc drilling rigs, dynamic seals inside cylinder 3128259243 endure severe mechanical cycles that can cause seal lip degradation, external fluid weeping, and internal bypass over extended operational shifts.

When dynamic seals wear down, operators face hydraulic cylinder creep, sluggish response times, and reduced holding force. Our 3128259254 Seal Service Kit directly restores original hydraulic pressure containment and protects high-value cylinder rods and barrels against premature scoring.

Technical Specifications & Equipment Cross-Reference

• Brand & System Compatibility: Atlas Copco / Epiroc Underground & Surface Drilling Systems

• Target Machinery Application: Atlas Copco Drilling Rig Hydraulic Systems

• Target Hydraulic Cylinder Part Number: 3128259243

• Kit OEM Part Number: 3128259254 (Cross-ref: 3128 2592 54)

• Internal Catalog SKU: 3128259254-AC-CYL

• Material Science Matrix: Mining-Grade TPU (Hydrolysis-Resistant) + High-Temp Viton (FKM) + Bronze-Filled PTFE + Industrial NBR

• Dynamic Operating Pressure Rating: Rated for continuous pressure containment and dynamic spikes up to 250+ Bar (3625+ PSI)

• Temperature Operational Limit: -30°C to 120°C (-22°F to 248°F)

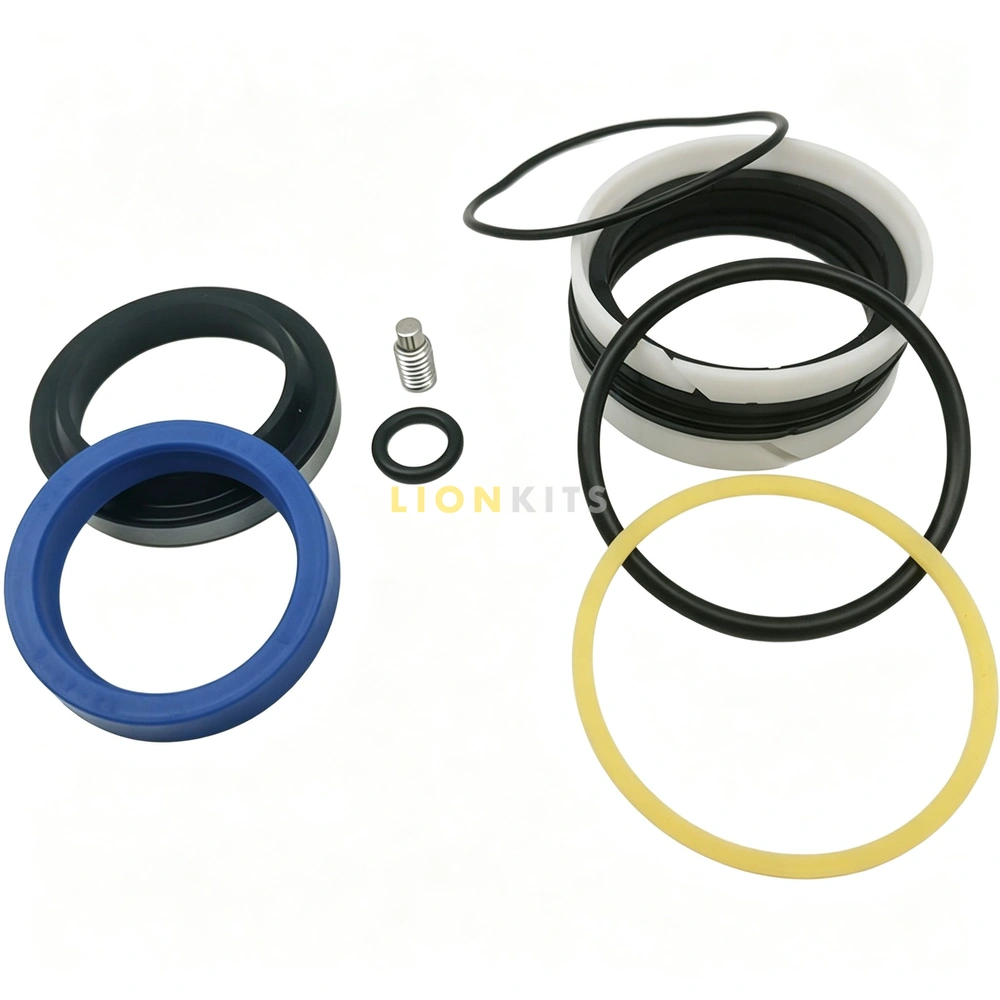

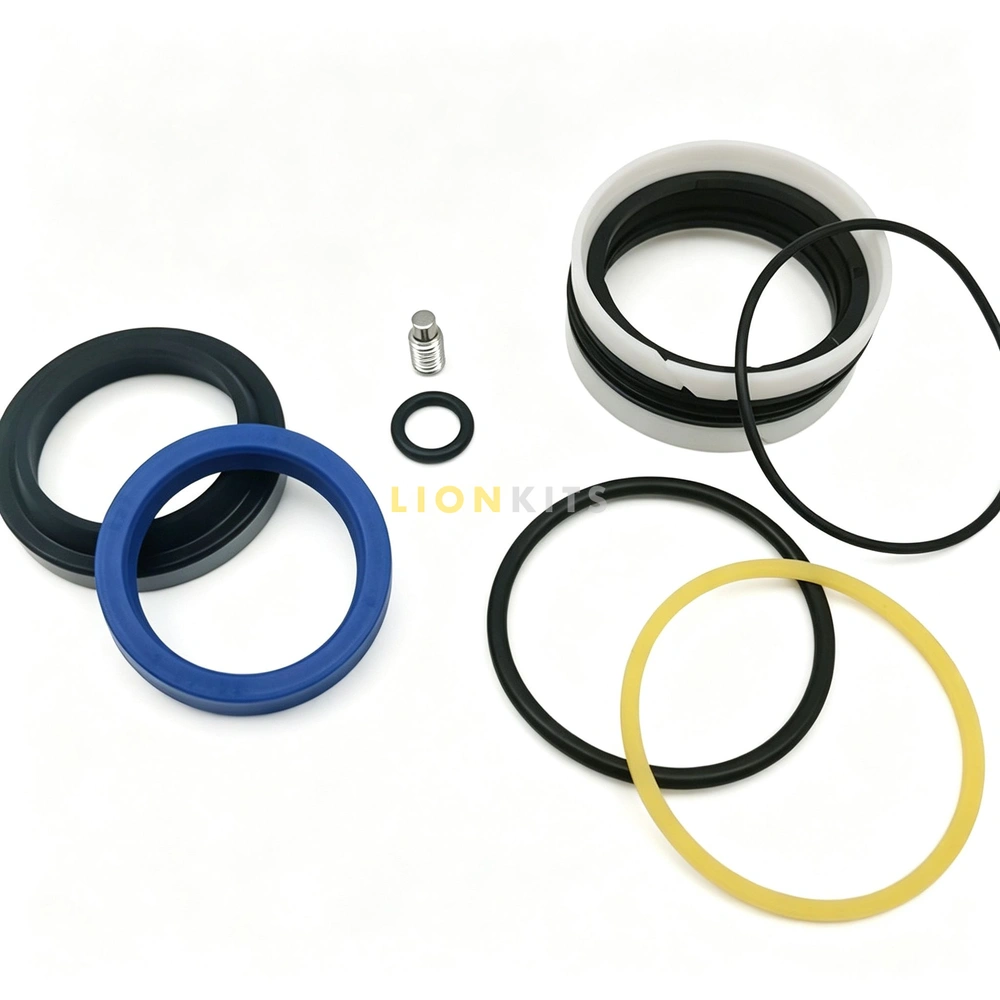

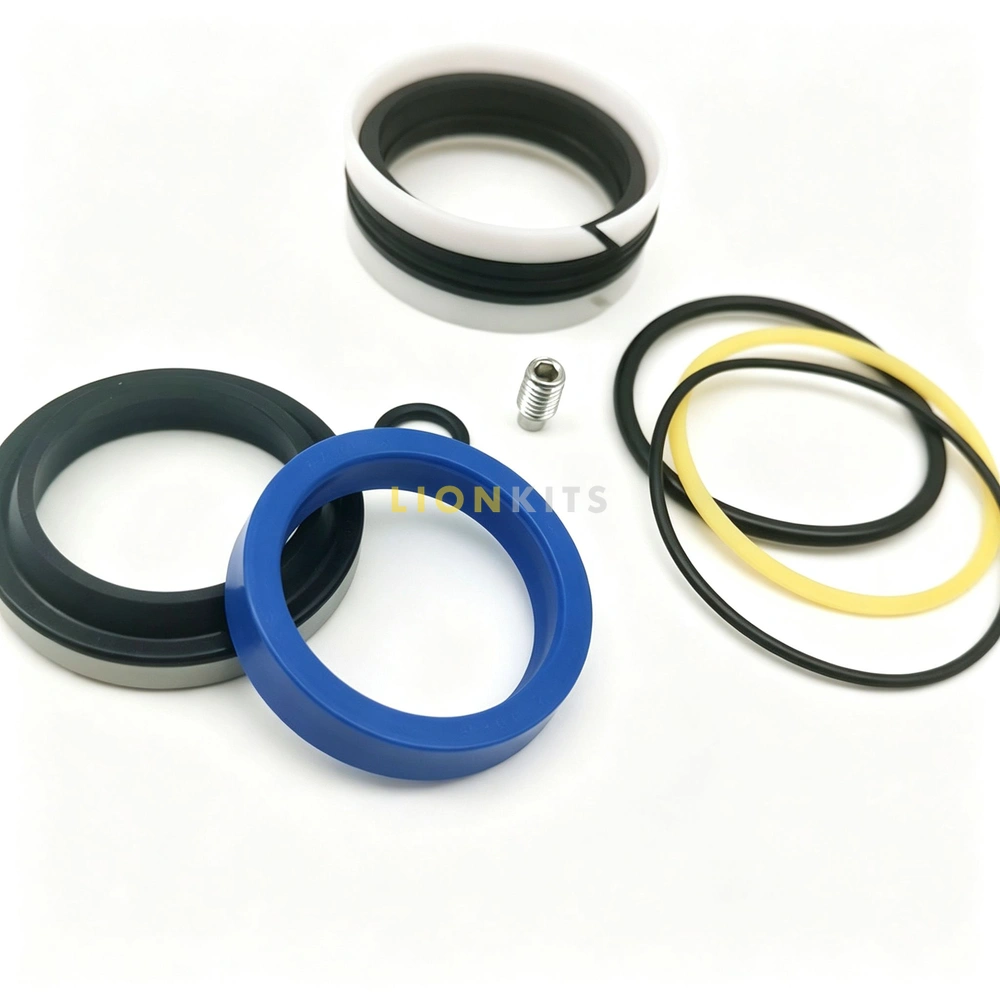

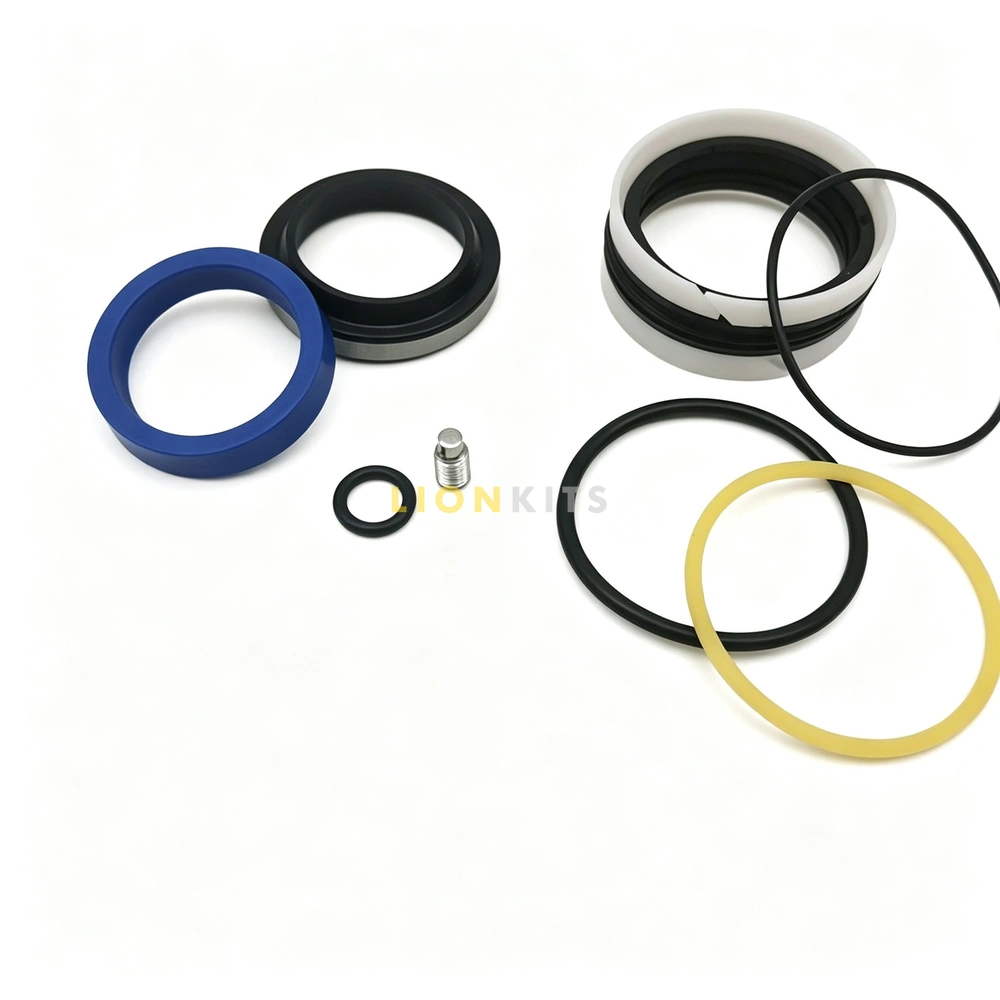

• Kit Inclusions: Dynamic Rod Seals, Piston Rings, Buffer Rings, Double-Lip Scraper Wiper, O-Rings, and Anti-Extrusion Backup Rings

Key Material Science Features

• High-Modulus Polyurethane (TPU) U-Cups: Retains dynamic sealing lip memory under cyclic load shockwaves without splitting or hardening.

• High-Temp Viton (FKM) Energizers: Maintains dynamic sealing tension during sustained oil thermal spikes in heavy-duty drilling cycles.

• Bronze-Filled PTFE Wear Rings: Dampens side-load chatter, prevents metal-to-metal contact, and stops internal fluid bypass across cylinder chambers.

• Heavy-Duty Scraper Wiper: Actively strips away quartz grit, drilling mud, and wash-down fluid from the rod surface before contaminants enter the housing gland.

Field Service & Rebuild Tips for Equipment Mechanics

💡 Fleet Maintenance Tip:

Hydraulic cylinder drift is commonly driven by internal bypass across degraded PTFE piston seals. When servicing hydraulic cylinder 3128259243 using the 3128259254 seal kit, inspect the inner barrel wall for scratching and verify that the rod is free of axial distortion. Replacing worn wear rings alongside dynamic rod and piston seals prevents radial play and extends rebuild service life.

Q&A

• Q: Is seal kit 3128259254 compatible with both Atlas Copco and Epiroc rigs?

  A: Yes. Epiroc is the dedicated mining and rock excavation equipment brand formerly operating under Atlas Copco. Kit part number 3128259254 / 3128 2592 54 matches identical OEM dimensions across both brand designations for cylinder 3128259243.

• Q: Which specific hydraulic cylinder does the 3128259254 kit service?

  A: This kit is engineered specifically for Atlas Copco / Epiroc hydraulic cylinder assembly number 3128259243.
