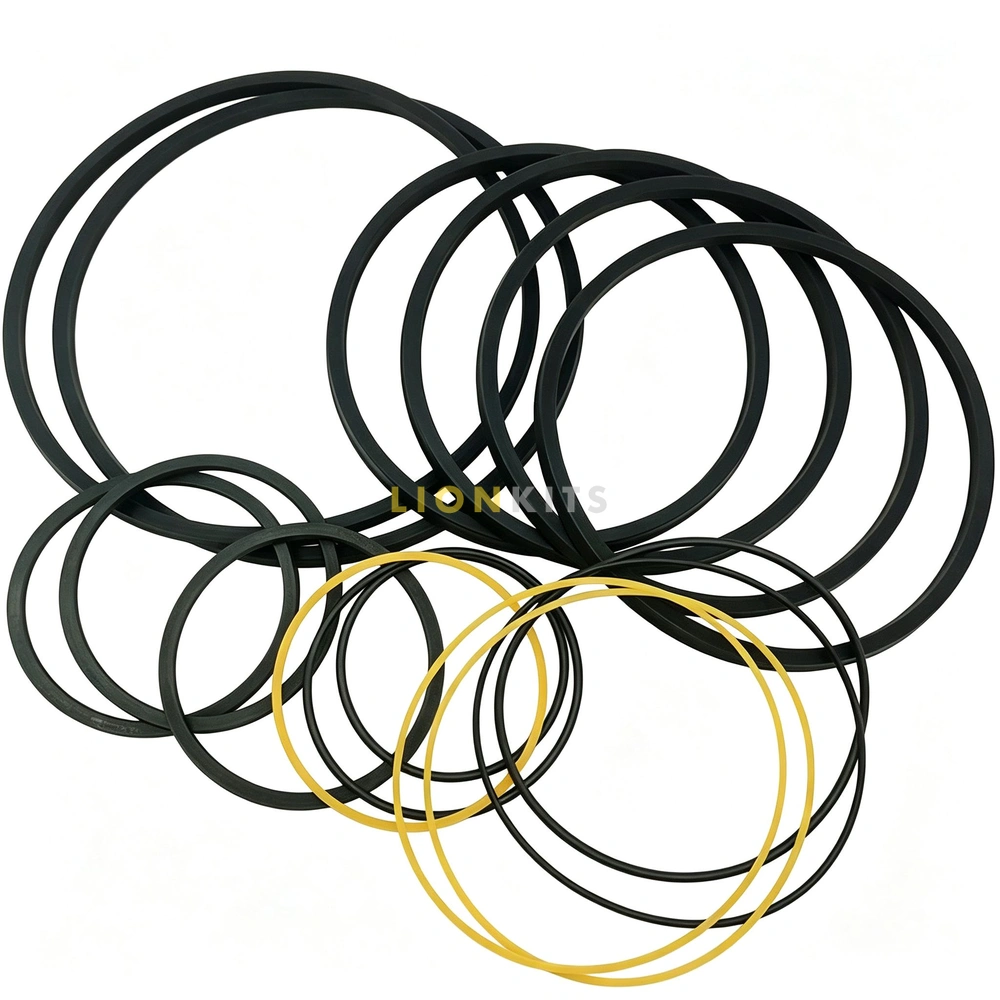

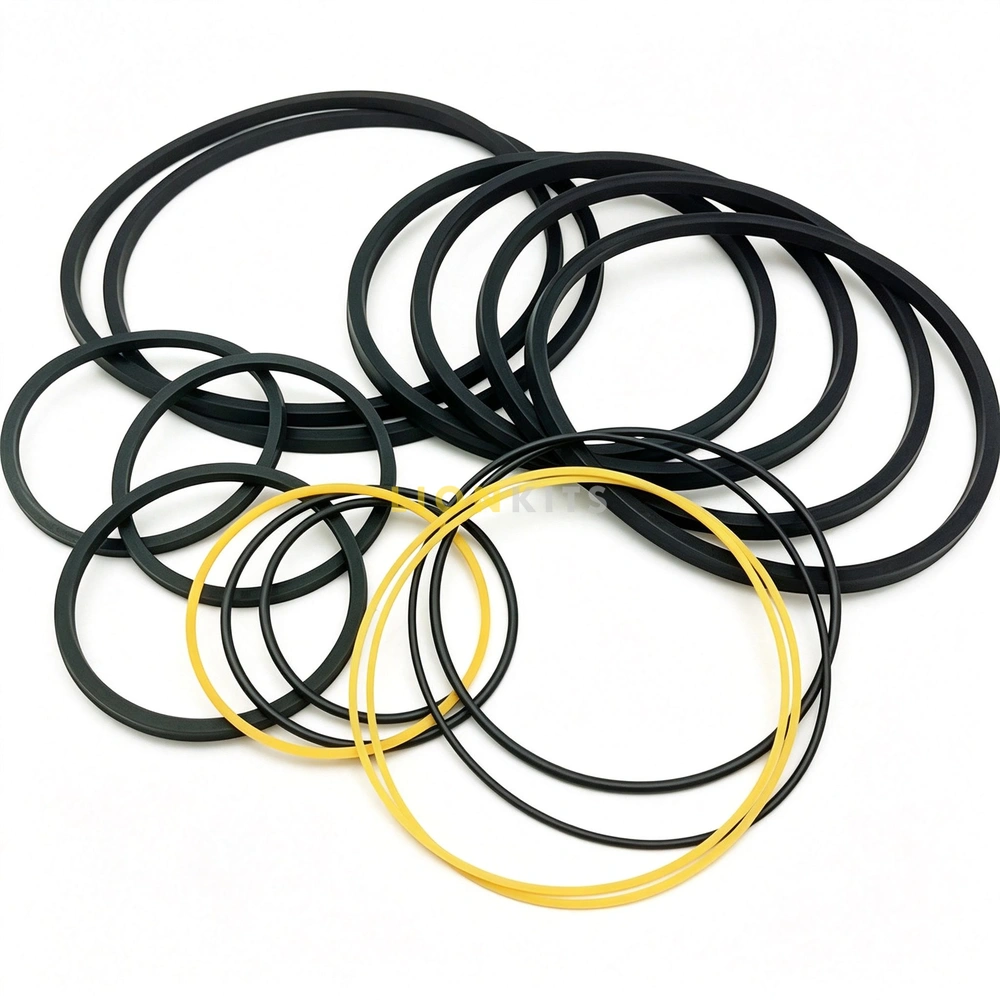

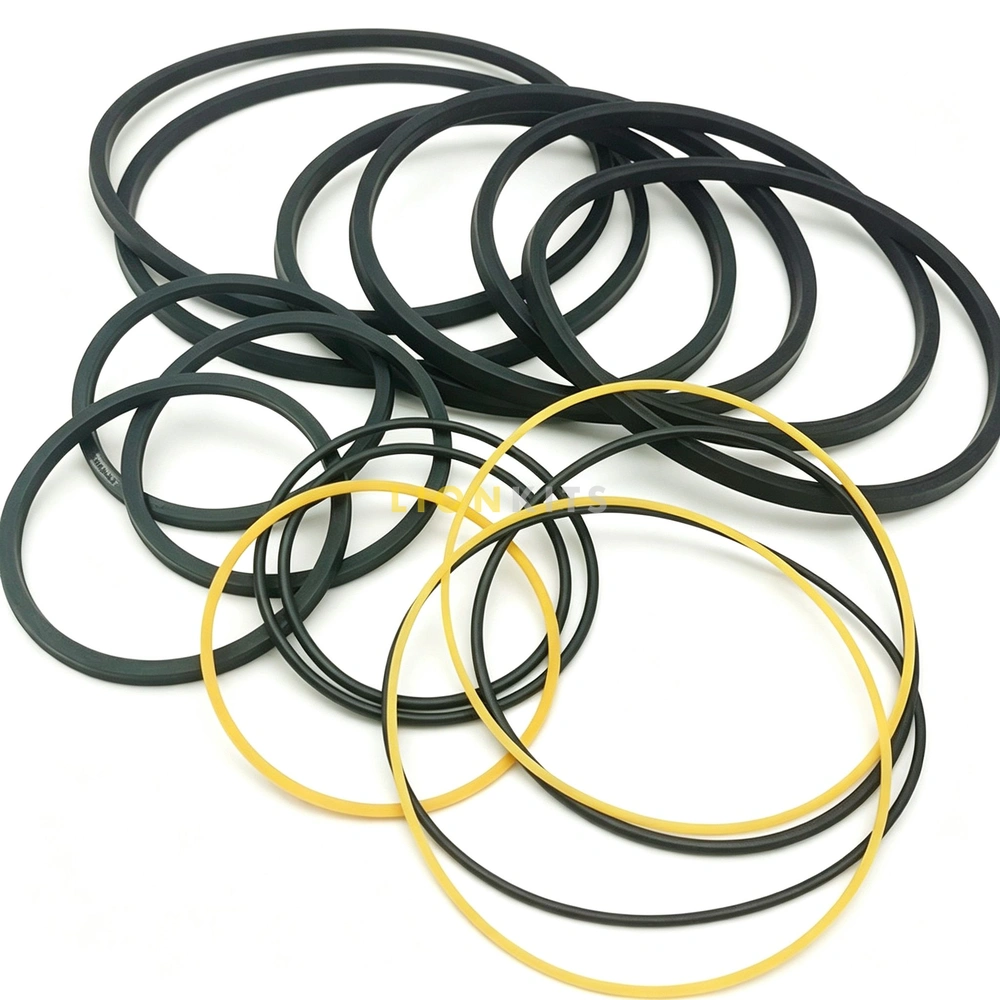

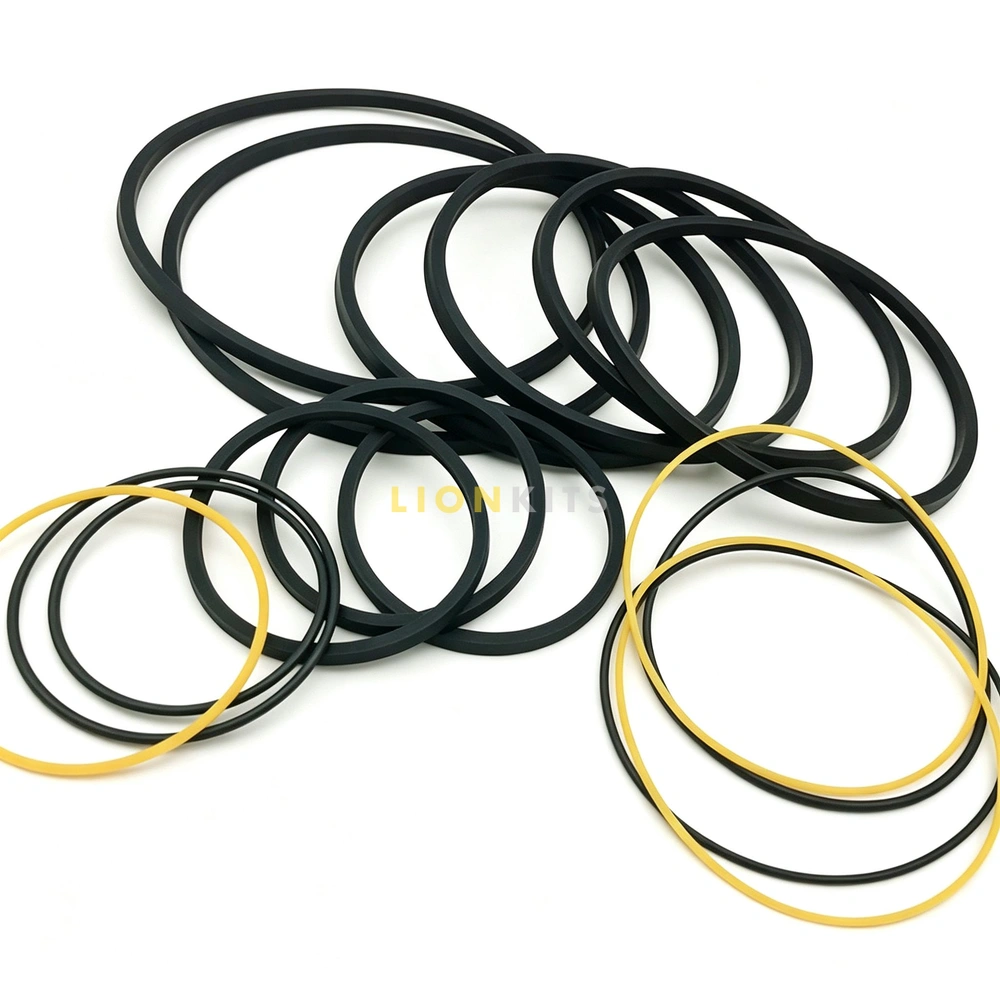

3128209144 Atlas Copco Boomer Face Drill Rig Seal Kit for Boomer S1D Boomer 281DH Face Drill Rig

Heavy-Duty Hydraulic Overhaul Service Kit for Atlas Copco Boomer S1D & 281DH Rigs | OEM Part: 3128209144

Built for Severe Underground Development & Tunneling

In hard-rock underground mining and drift development, Atlas Copco / Epiroc Boomer S1D and Boomer 281DH face drilling jumbos operate under relentless hydraulic loads, continuous mechanical vibration, and aggressive slurry contamination. Over extended operational shifts, thermal friction and cyclic pressure shockwaves cause dynamic seal lips to degrade, resulting in boom creep, reduced feed force, and external fluid weeping.

Our 3128209144 Hydraulic Seal Repair Kit is custom-compounded from high-spec Polyurethane (TPU), Fluorocarbon (FKM/Viton), and bronze-filled PTFE to deliver high seal memory, zero-leak dynamic containment, and extended service lifespan in demanding underground headings.

Technical Specifications & Equipment Compatibility

• Brand & System Compatibility: Atlas Copco / Epiroc Underground Mining & Tunneling Systems

• Target Machinery Models: Atlas Copco Boomer S1D and Boomer 281DH Underground Face Drilling Rigs

• Primary OEM Part Number: 3128209144 (Cross-ref: 3128 2091 44)

• Internal Catalog SKU: 3128209144-AC-BOOMER

• Material Composition Matrix: Hydrolysis-Resistant TPU + High-Temp Viton (FKM) + Bronze-Filled PTFE + Industrial NBR

• Dynamic Operating Pressure Rating: Rated for continuous load holding & peak pressure spikes up to 250+ Bar (3625+ PSI)

• Thermal Endurance Range: -30°C to 120°C (-22°F to 248°F)

• Primary Applications: Boom Positioning Circuits, Feed Assembly Cylinders, and Hydraulic Control Valve Overhauls

Key Hydraulic Protection & Material Features

• High-Modulus Polyurethane (TPU) U-Cups: Retains dynamic sealing lip tension and flexible memory under rapid mechanical vibration without splitting or hardening.

• High-Temp Viton (FKM) Back-up Energizers: Maintains elastic recovery and radial sealing force during intense hydraulic oil heat spikes inside enclosed mine faces.

• Anti-Extrusion Bronze-PTFE Guide Rings: Absorbs lateral thrust forces, dampens side-load chatter, and isolates fluid chambers to eliminate cross-leakage.

• Severe-Duty Double-Lip Scraper Wiper: Keeps quartz dust, rock slurry, and wash-down water from penetrating gland housings, protecting internal chrome rods.

Field Service & Maintenance Guidelines for Mine Mechanics

💡 Fleet Maintenance Tip:

Fine rock dust in underground headings can blend with hydraulic oil to form an abrasive paste that wears dynamic seals prematurely. When overhauling hydraulic components on Boomer S1D or 281DH rigs using the 3128209144 kit, thoroughly clean all gland cavities in a clean solvent bath. Inspect chrome piston rods for micro-scoring or flaking, and replace worn wear rings concurrently with dynamic U-cups to prevent housing chatter and extend rebuild service life.

Q&A

• Q: Is seal kit 3128209144 interchangeable between Atlas Copco and Epiroc brands?

  A: Yes. Epiroc is the dedicated mining equipment brand formerly operating under Atlas Copco. Part number 3128209144 / 3128 2091 44 matches identical OEM dimensions across both brand designations for Boomer S1D and 281DH rigs.

• Q: What are the primary failure symptoms indicating that a Boomer S1D or 281DH hydraulic circuit needs new seals?

  A: Common indicators include hydraulic cylinder drift during boom/feed positioning, visible fluid weeping around gland housings, slow hydraulic response times, or elevated system temperatures caused by internal oil bypass.
